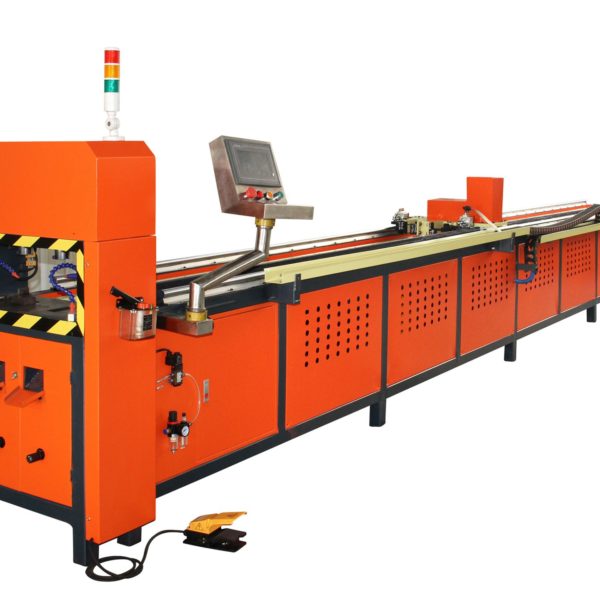

Auto Double head Cnc pipe punching line 6m cnc tube hole punching machine

Auto Double head Cnc pipe punching line 6m cnc tube hole punching machine

https://youtu.be/3q8rgqiugsI

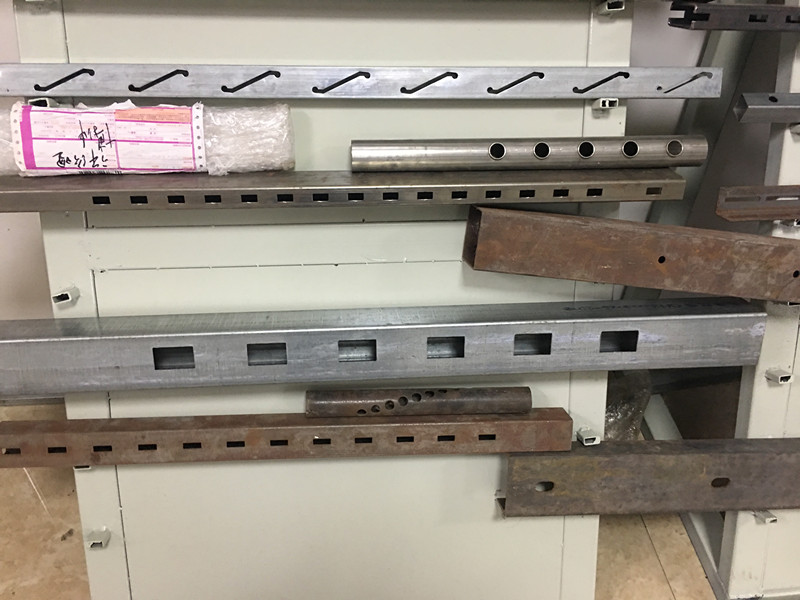

this machine can be used for pipe, angle steel, U Channel , flat bar or round bar and so on .

1, Process introduction and advantages of punching and Auto Double head Cnc pipe punching line 6m cnc tube hole punching machine:

  1. Automatic feeding and automatic punching after artificial feeding

2, precision of punching precision, increase the rate of finished products

  1. The labor intensity of the workers is low, the operation is simple and the labor is saved.
  2. High safety, unique structural design of machine and die safety, to ensure the safety of workers and reduce industrial accidents
  3. Program adjustment of punching spacing

6, easy maintenance, stable and mature standard parts system, convenient and easy maintenance, reduce maintenance costs. Campus is an automatic process, continuous forward clamping to send plates, to achieve the desired desired results.

Punching and drilling efficiency

  1. single flush a tube, which can basically meet the punching at any position above a tube.
  2. punching speed: 40-60 times per min..
  3. hole distance precision: + 0.15
  4. the length of the punching hole of the largest workpiece: 6M

The 5. operation interface is simple and easy to learn, the idiot operation, the punching hole can not be equal distance punching, but also can equidistance punching.

  1. feeding mode: after the automatic feeding of the workpiece by hydraulic clamping, the material is sent out automatically according to the distance of the hole. The feeding mode adopts the high precision servo motor to control the feed automatically.
油缸工位/stations2 Standard ( 3 customerized )
加工长度/length6000 mm
设备高度/height1680mm
设备宽度/width860mm
设备长度/total length6990mm
最大加工管材(max pipe size)100x100x4
模具材料(mold material)SKH-51 mold steel
模具淬硬(mold hardness)53HRC
整机加工/machiningTotally machining by cnc lathe
驱动辊数量/drive roller amount2
驱动系统/drive systemServo drive feeding
速度/feeding speed25m/min max , adjustable to pipes

Auto Double head Cnc pipe punching line 6m cnc tube hole punching machine

System and electrics
kw7.5kw/11kw (customer choice)
Power380V/50HZ/3PH(Optional to site)
ControllerOne PLC Focus controller, easy to operate

Main components (top brands)

Oil cylinder: Hailin oil tank

Seal: USA PARKER Parker hydraulic

Tubing and joint: PARKER Parker

Rack gear: Taiwan KH brand

Electrical components: Schneider / SIEMENS / CHINT

Rexroth hydraulic pump.

Hydraulic solenoid valve: Jin Hefeng

Rexroth hydraulic valve.

Die: SKH-51, Japan

Servomotor: Taiwan Delta

Servo encoder: Japanese MITSUBISHI.
