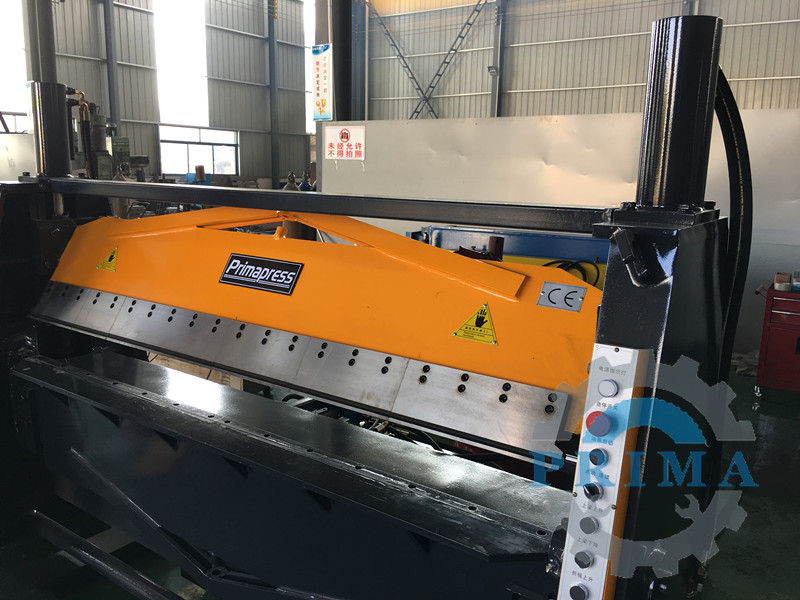

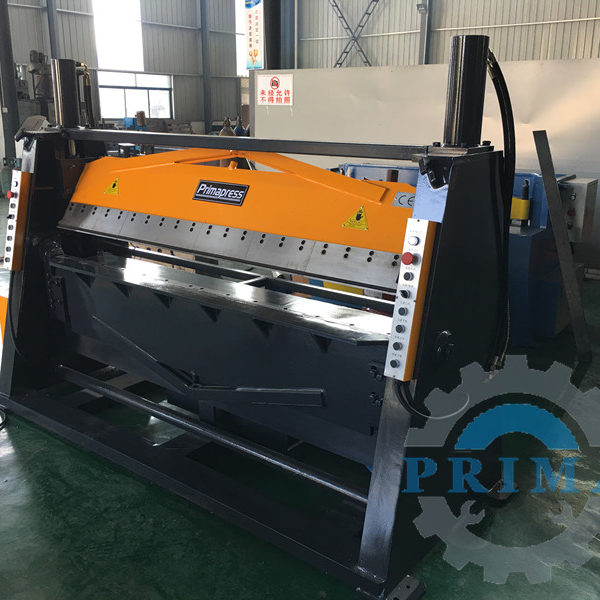

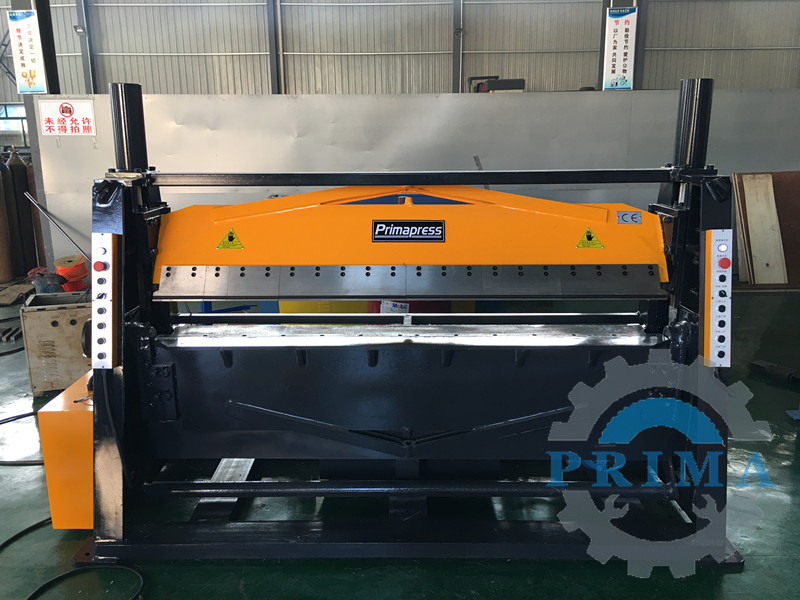

Duct CNC Hydraulic Folding Machine , hydraulic folder machines

Duct CNC Hydraulic Folding Machine , hydraulic folder machines

https://youtu.be/VZkgEcRYnic

Quote

Date: 25,05,2016                                                          No: PR20160525

SELLER:Maanshan Prima CNC Machinery Co,.LTD

Address: Address: Sanyang industrial Park, Bowang District, Maan Shan city,Anhui

Tel& Fax: +86-555-6760366                         Contact:Mr Jackson



VALIDITY:40 DAYS FROM THE DATE HERE OF.

Marks Commodities & Specifications Brand Quantity Unit Price Amount
1 W62Y-4X2500mm hydraulic folding machine with removeable teeth Prima 1 set USD,$7500.00 USD,$7500.00
3 In total USD,$7500.00

1.Payment:The payment term is 30%T/T as deposit, the rest 70% before dispatch.

2.Price terms: FOB Shanghai  .

3. Packaging: wooden case packaging ! It will be carried as a whole, with book for use and installation.

4. Delivery time terms: The delivery time is within 3 working days after the receipt of your order.

5. Loading port: Shanghai, China                6.Port of destination: Kuwait.



1. Hydraulic clamp and unclamp from foot switch, this allows one man to operate machine and hold material in both hands; Clamping is limited to 10mm increments for safety. Unclamp from foot switch.

2. Rapid head adjustment allows easy change different size material, by moving the handles, Adjustable to suit special jobs .
3. Fingers clamp blade are high carbon steel, Apron blade high tensile steel.
4. Electrics low 24 volts foot switch. Overload protected.
5. Clamping provided by large rams, Oil delivered to rams through steel pipes this is to minimize expansion of hydraulic hose when working at full capacity.
6. Unclamp is controlled, to allow the operator to regulate the open height
7. Bed head and apron are unique design, to provide maximum strength. To give a straight fold.
8. Automatic and manual control. In auto cycle after clamping start auto a[rpm will come up to angle set, then apron will go down and the head will unclamp to amount set by operator.
9. Electric components is.SIEMENS
CNC system,high precision.

Easy to operate

Function and characteristic:

The machine tool is full welded-steel plate construction. After vibration aging treatment, the deformation is minor so that the accuracy can be ensured.

Machine is hydraulically powered. It is low energy construction, easy to maintenance and durable in use.

Upper acting die is sub-portfolio with the open height up to 110mm and suitable for producing disk, box like workpieces.

The bending angle and back gauge is controlled by numerical control system, rapidly and accurately



Model Folding thickness
(mm)
Folding Width
(mm)
Evolving angle
(°)
Max open height
(mm)
Motor power
(mm)
Dimension
(mm)
W62Y-3X2500 3  2500  0-120  110           4  3700x1640x1650
W62Y-3X3200 3  3200  0-120  110           4  4400x1640x1650
W62Y-4X2500 4  2500  0-120  110           4   3950x1640x1650
W62Y-4X3200 4  3200  0-120  110           4  4450x1640x1650
W62Y-6X2500 6  2500  0-120  110          11  3900x1640x1650
