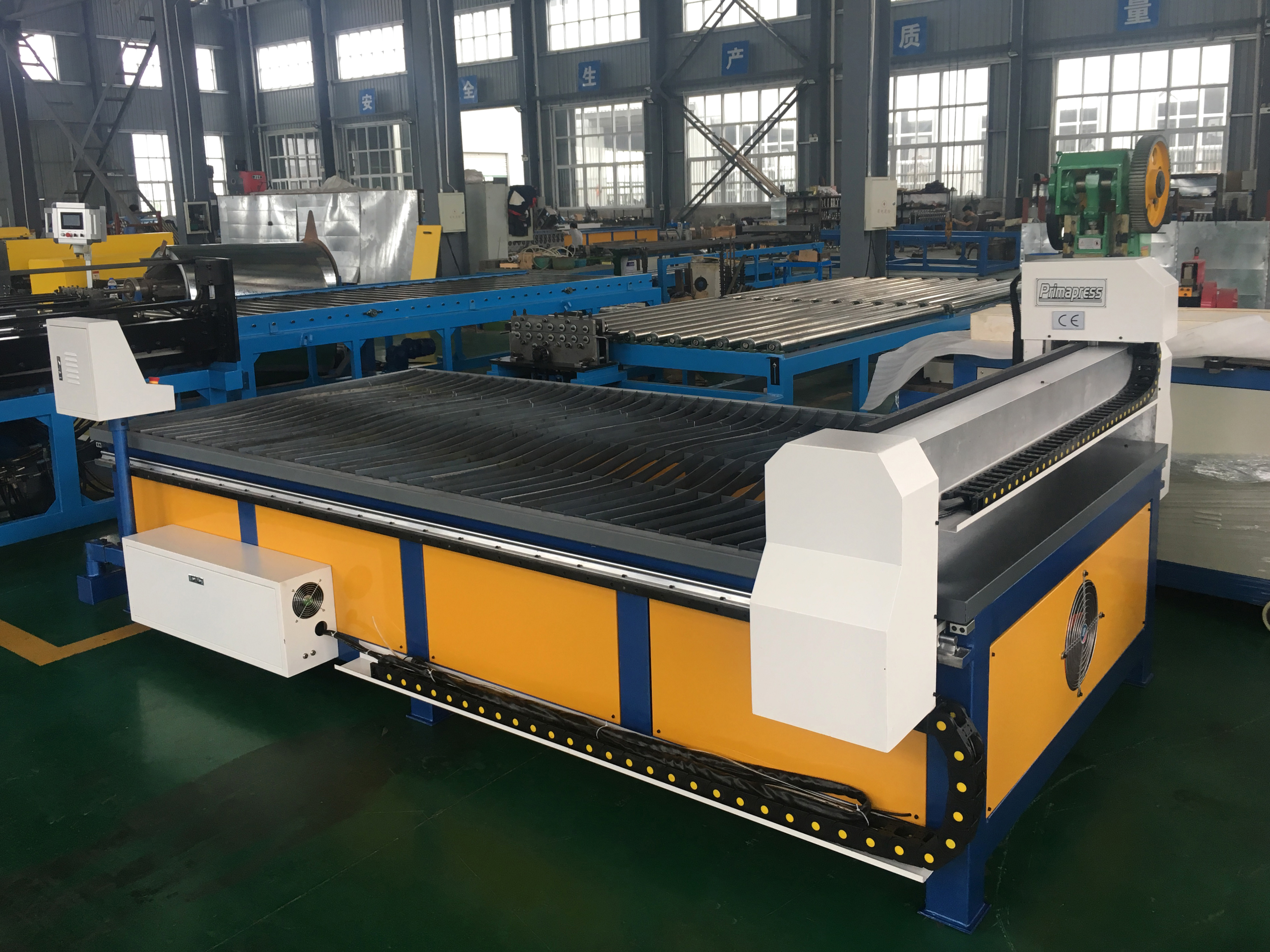

Duct CNC Plasma cutting machine , CNC Plasma Cutter machine
Video link in Youtube:

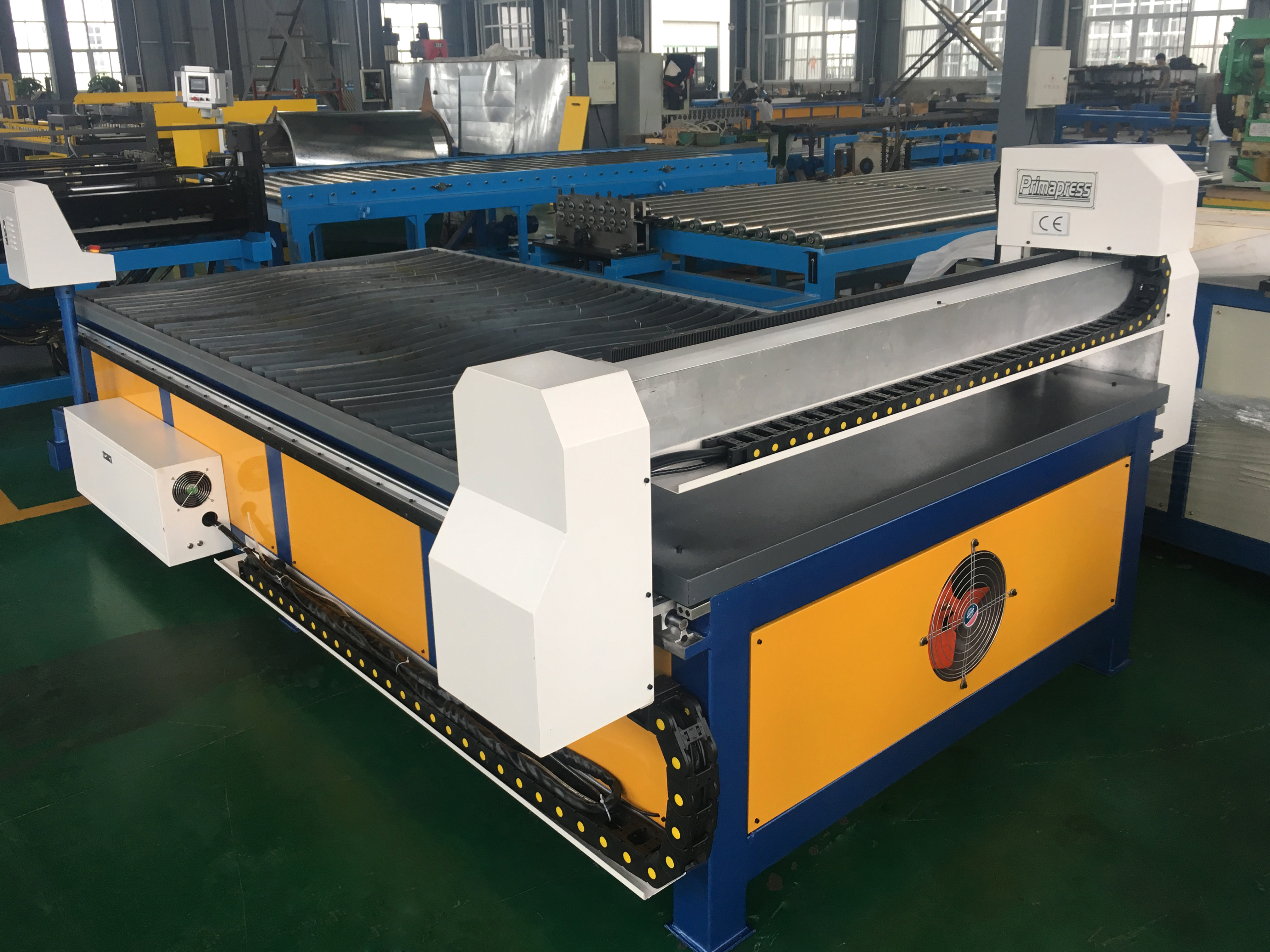

Features: 1. Beam with light structural design, the structure has good rigidity, light weight, exercise inertia and low cost.
- Gantry-type structure, Y-axis synchronous dual-motor drive and XYZ axis with circular rail (optional formula-type linear guide), steady transmission, and high accuracy.
- For advertising solid light, groove metal panel and bottom plate of the word for cutting, cutting accuracy good indicator. If equipped with the U.S. Treasure plasma power can achieve lower laser cutting machine.
- And other advertising devices(vacuum forming machines, gear cutting machine) to form ad word processing pipeline, completely solve the traditional way of manual processing. Improve efficiency several times.
- Cutting speed, high accuracy and low cost.
CNC system configuration high, automatic arc, stable performance, the success rate of 99% arc.

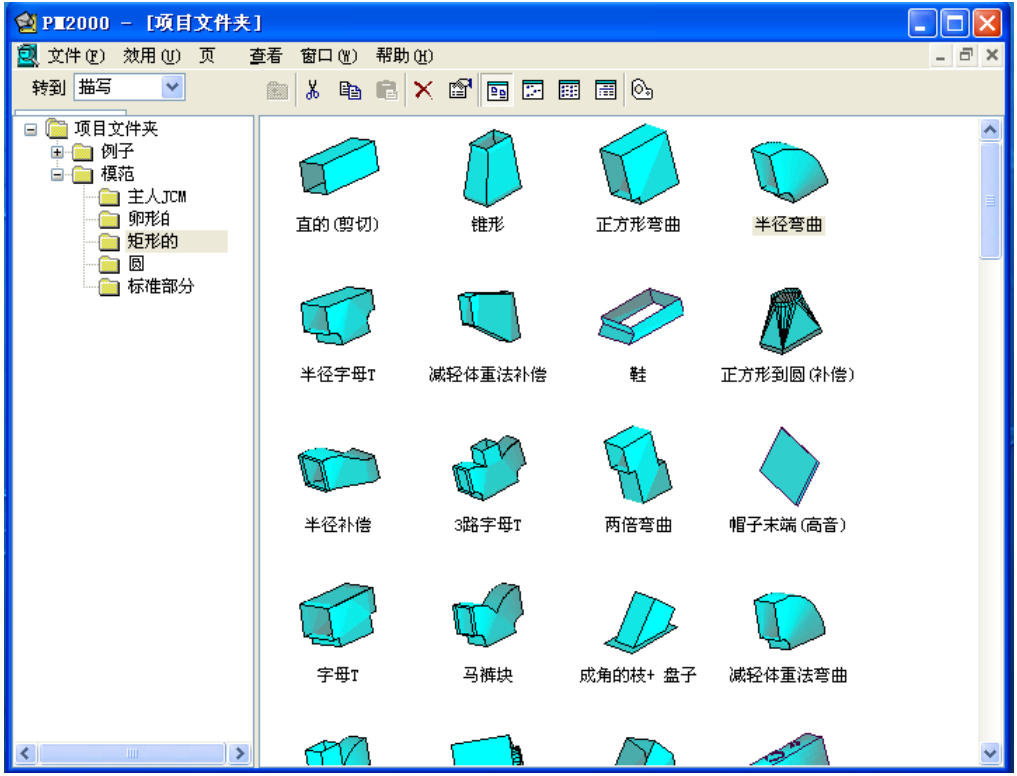

- Support Wentai, Beihang Haier, ARTCAM, Type3 software such as the standard G code path generated file can also be read by software conversion software such ad AUTOCAD generated DXF formats. U disk exchange control system processing files, easy to operate.
- Plasma torch power supply and supporting all famous brands, a number of national patents by the manufacturers.
Application
This machine can cut mild steel with flame cutting, and cut high carbon steel, stainless steel,
aluminum, copper and other non-ferrous metal with Plasma cutting; can configurate as you required.,thus it is widely applied in industries such as machinery, automobile, shipbuilding, petro-chemical, war industry, metallurgy, aerospace, boiler and pressure vessel, locomotive etc.

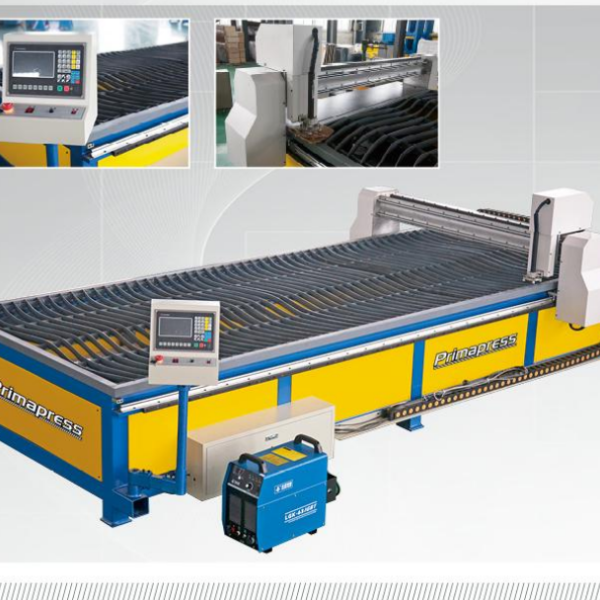

3000x1500mm plasma cutting machine Technical Parameters:
| Name | parameters | unit | Applications:
|
| Processing area | 1500*3000mm effective | mm | |
| Processing materials | Iron, aluminum, galvanized sheet, white sheet, titanium plate | ||
| Processing thickness | 0.1-6mm by plasma cutting | mm | |
| Cutting speed | 0-16000mm/min | ||
| Power | 7.5 | KW | |
| Input voltage | 3-phase 380 (optional to site) | V | |
| Power frequency | 50 | HZ | |
| Plasma current | 63 | A | |
| Control system | SF-2012AH | ||
| File transfer mode | USB interface | ||
| work | Non-contact arc | ||
| Reposition precision | ±0.05mm | ||
| Processing precision | ±0.1mm | ||
After-sales Service:
- The whole machine we offer one year guarantee time free, without consumable parts replacement and man-made fault
- User-friendly English manual and video CD for machine using and maintaining
- My company English software can do all kinds of pattern recognition,software upgrading and updating free
You are the one we CARE ABOUT! We always offer you our best service no matter when and where
Main components list:
| No | Items | Amount | Unit | Remarks |
| 1 | Main motor | 1 | Plasma cutting | |
| 2 | Driving mode optional | http://panasonic.cn/ | Japan Panasonic servo | |
| 3 | Speed reducer | 2 | Quality mechanical speed reducer | |

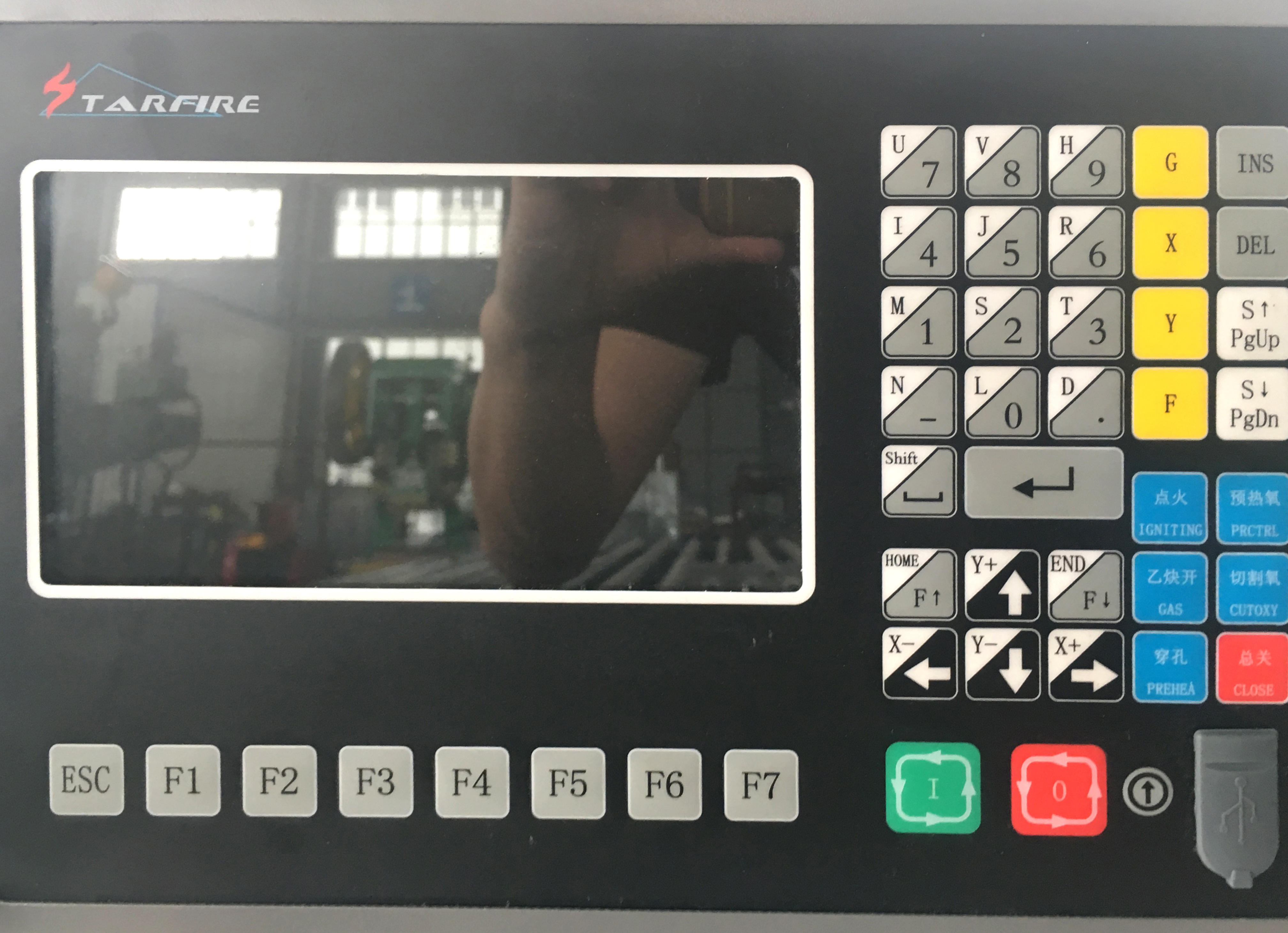

| 4 | Control system | 1 | http://www.starfcnc.com/ | Starf CNC, Beijing |
| 5 | The transverse rack | 2 | http://www.hiwin.tw/ | rectangular linear guide Taiwan Hiwin |
| 6 | Longitudinal track | 2 | ￠25mm Precision circular orbit | |
| 7 | Horizontal transmission | 1 | http://www.hiwin.tw/ | gear rack |
| 8 | vertical transmission | 2 | http://www.hiwin.tw/ | gear rack |
| 9 | stop block | 2 | Mechanical limit& Electronic limit | |
| 10 | Dust treatment | 1 | axial flow fan | |
| 11 | height-regulating device | 1 | http://www.starfcnc.com/ | Starf CNC, Beijing |
| 12 | FASTCAM | 1 | Expert Edition FASTCAM | |
| 13 | Optional generator | 1 | http://www.hypertherm.com/ | USA Hypertherm 45A |
| 14 | Electrical parts | www.schneider-electric.com | Schneider-Electric |
