Duct reeling machine , duct reviting machine supplier

Duct reeling machine , duct reviting machine supplier

https://youtu.be/sTxNuS2P1fg

One. Features

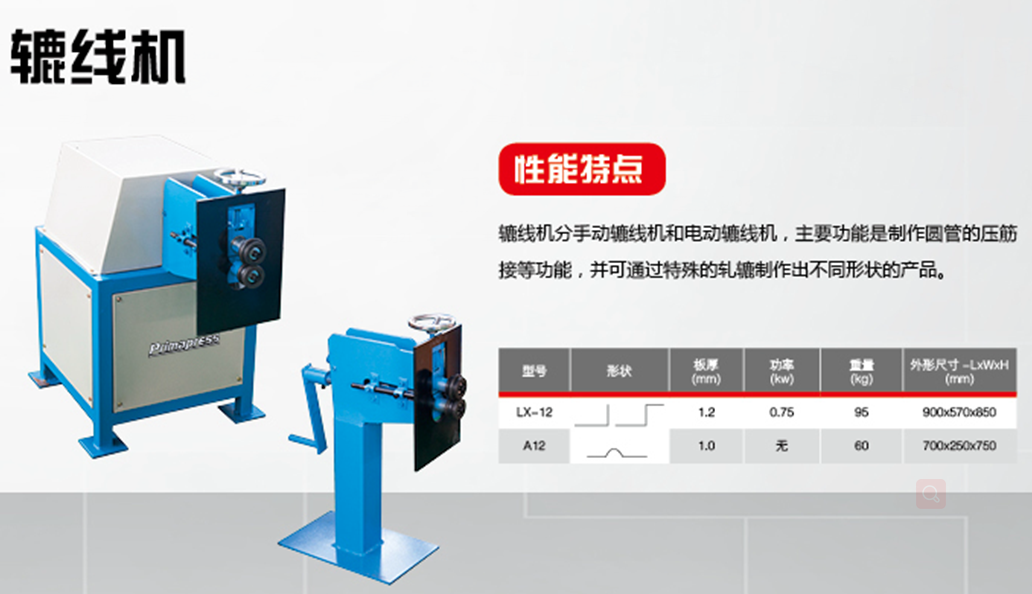

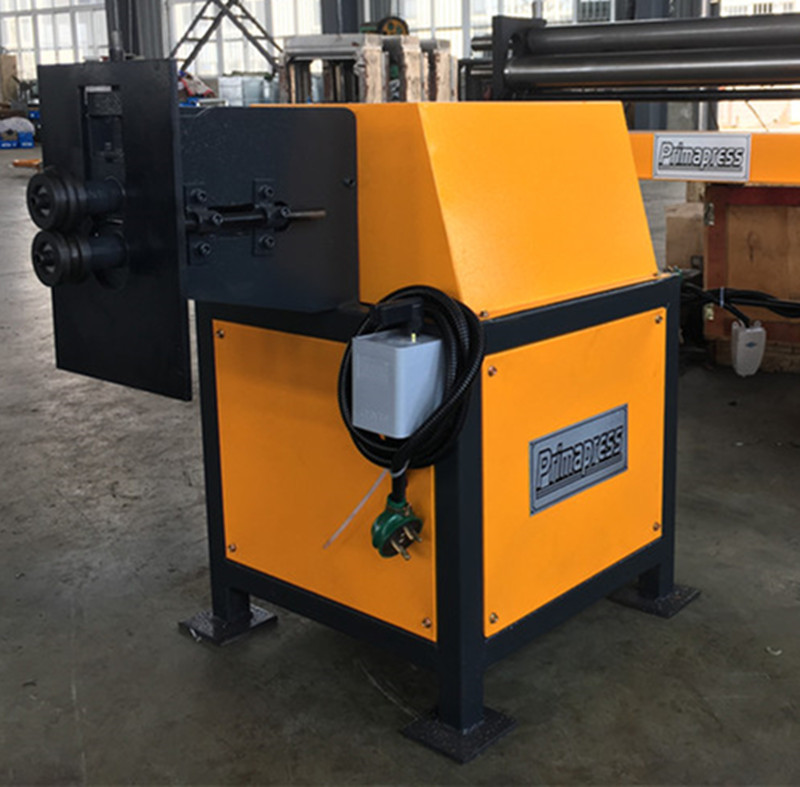

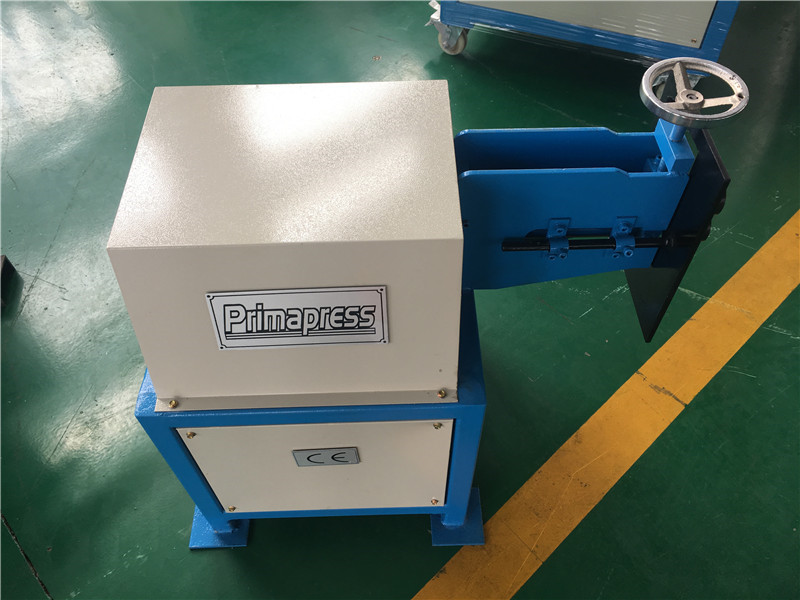

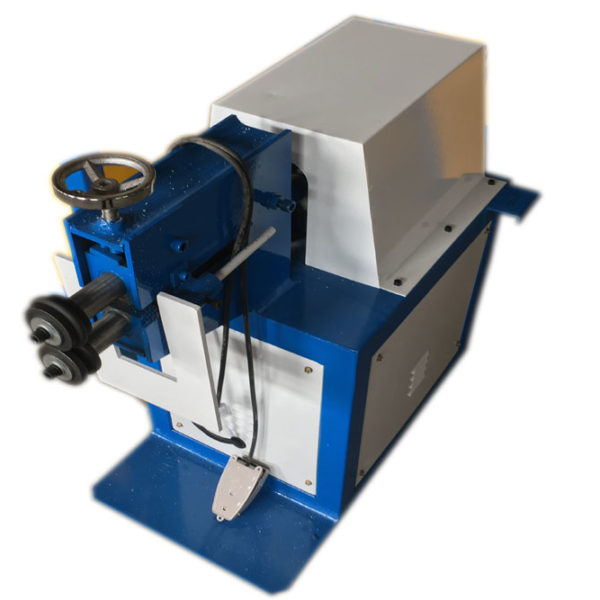

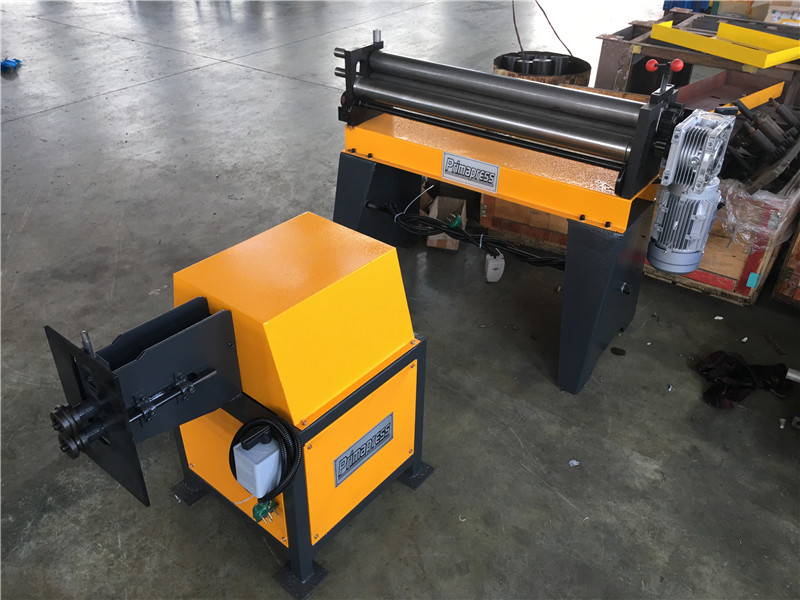

This rotary machine is widely used in HVAC duct fabrication system industry, mainly for flanging and beading with special rollers.
Also it can make the different work pieces with special rolling wheels, such as for leveling metal sheets, shearing sheets, corrugating plates, etc. Power Swaging machine and Universal Hand beading machine can be selected.

There have three sets moulds for flanging including the Swaging machine, if client want any other related moulds, the payment for moulds are additional.

Model Max Thickness (mm) Motor(kw) Weight(kg) Size(mm)
LX-15 1.2 0.75 120 820x520x900
