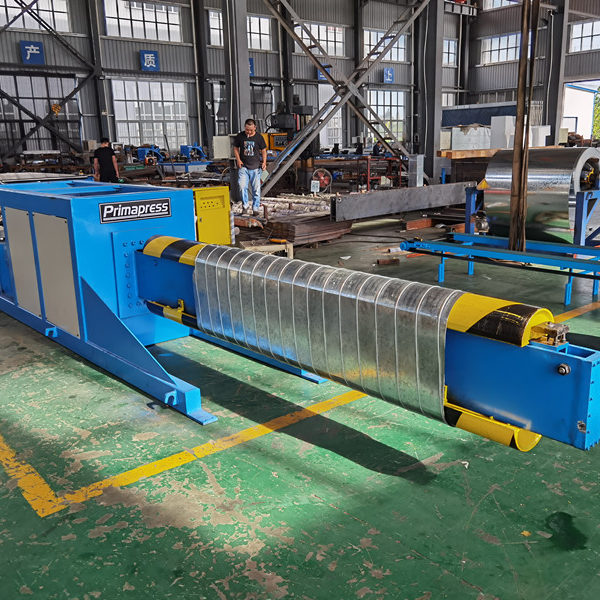

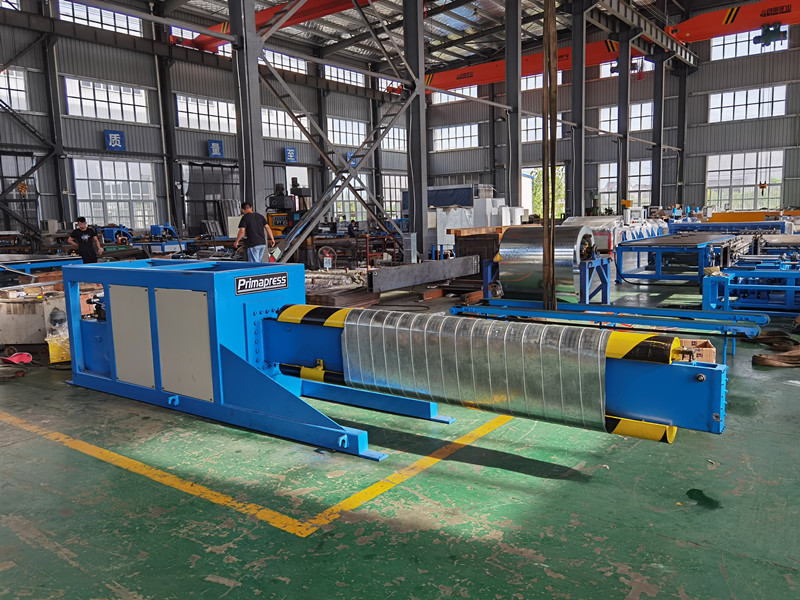

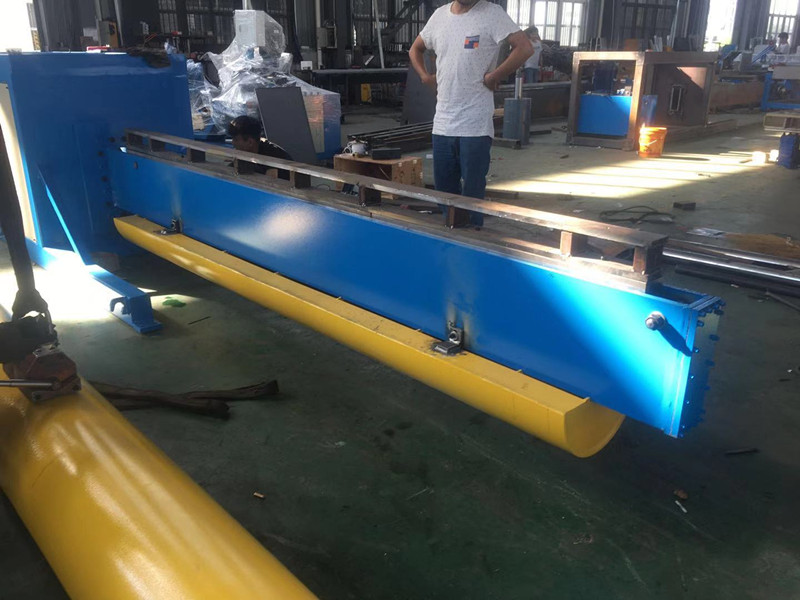

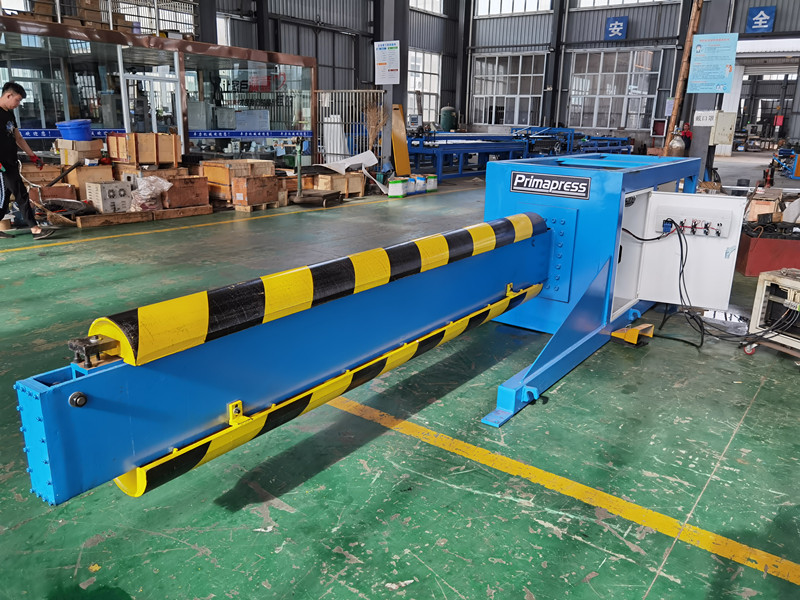

Flat-Oval Ducts Machine duct ovalizer machine hvac oval duct machine oval duct pipe making machine

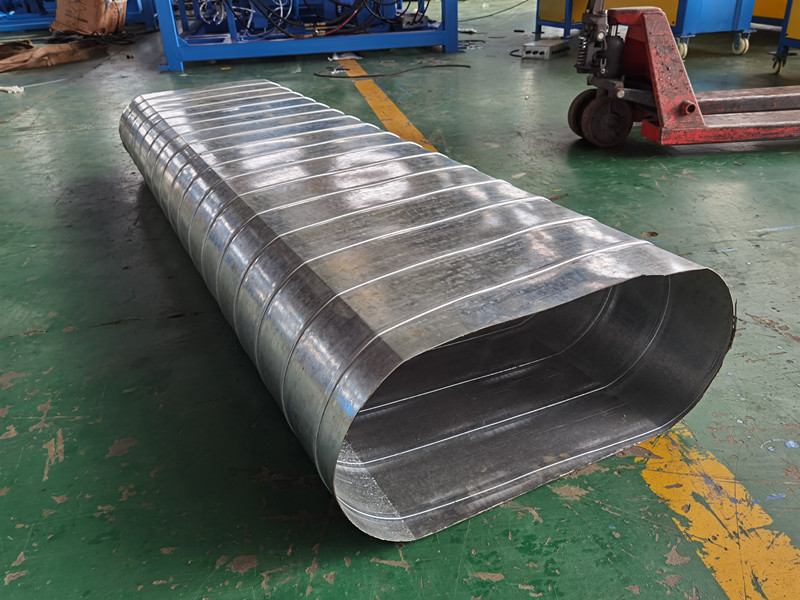

flat-oval ducts. Machine control is by PLC, and the LCD unit on the operator‘s panel stores all set parameters for easy recall by the operator when required
Main technical data
| Type | PM-3100 |
| Thickness | 0.4-1.2mm |
| Tube Length | 3100mm |
| Diameter | 330-1600mm |
| Flat Oval sizes | 150×468mm-900×2060mm |
| Power | 18kw |
| Weight | 3300kg（Without Mould） |
| Dimension | 5600×1200×1300mm |
| Note：
– All dimensions are nominal – The duct circumference is increased by approximately 0.7% in the stretching process |
|
