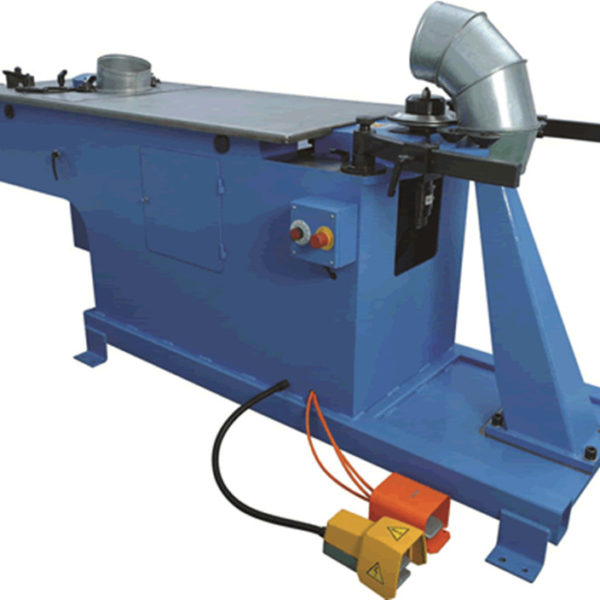

Hydraulic elbow making machine , hydraulic gore locker machines
Video in youtube:
| https://youtu.be/RcUOO2txiuE |
| https://youtu.be/UbHLOKR7tls |
One. Features
Brief introduction
Dual working station
Maximum flexibility-eliminates equipment’s changing over and reduces tool’s changing
Higher production speed
Higher capacity
Improved seam’s quality
Second, Data
| Electrical power | 380V/50HZ/3PH |

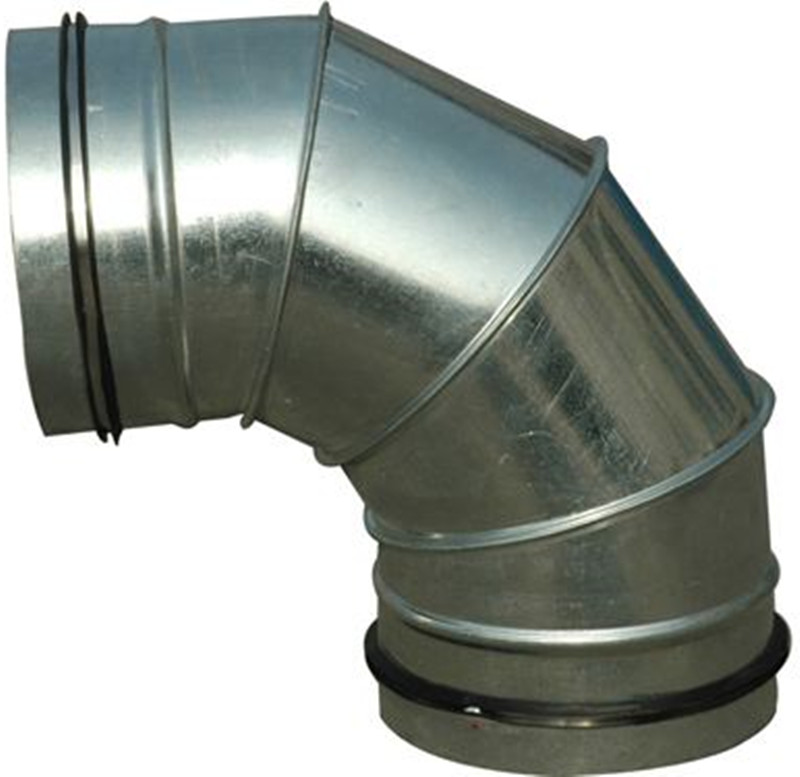

| Diameter range of the curves | 125-1000mm |
| Max. segment angle | 30o |
| Sheet thickness | Galvanized steel 0.4~1.2mm |
| Stainless: 0.4~0.9mm | |
| Aluminum: 0.4~1.2mm | |
| Copper: 0.4~1.2mm | |
| Flange heights | 5mm/7.5mm/10mm |
| Recommended ranges | 5 mm to 200 mm diameter
7.5mm to 700mm diameter 10mm above 700mm diameter |
| Circumferential speed of the roller | 0 – 15 m/min |
| Weight | 680kg |
| Dimensions | 1350脳620脳1170mm |
| Pckaging Size | 1350脳1150脳1320mm |

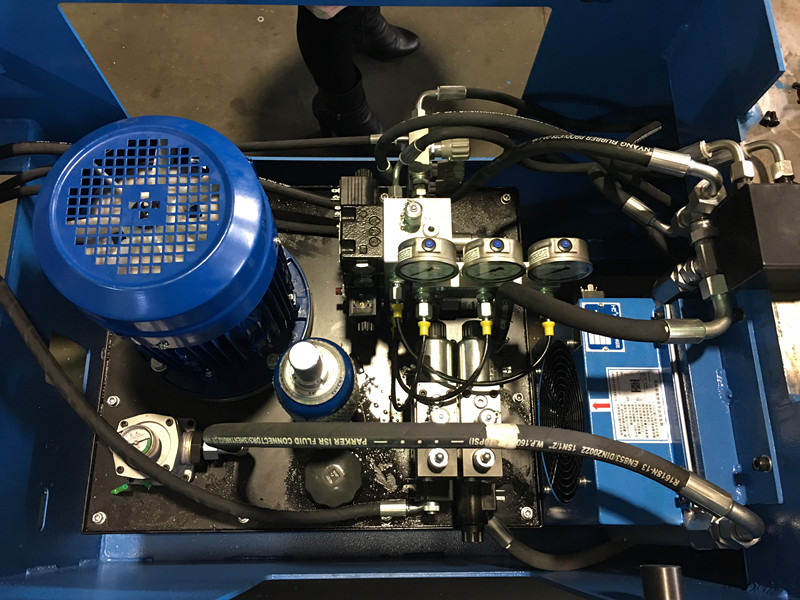

Italy imported Components:
