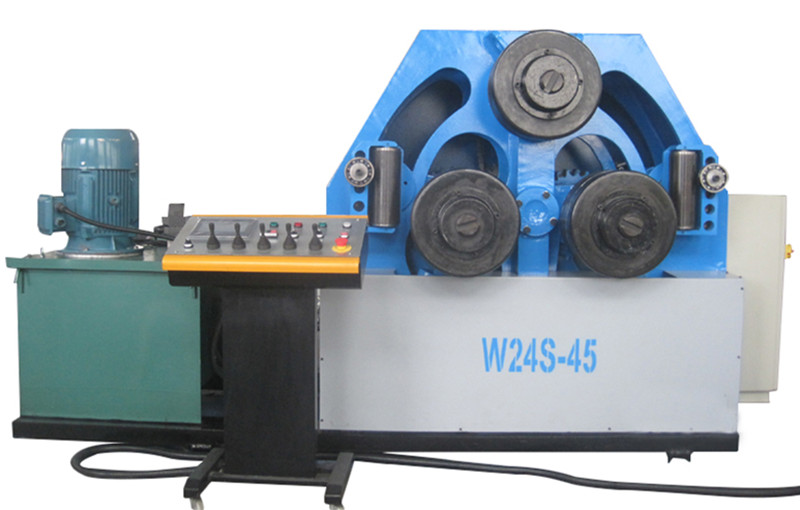

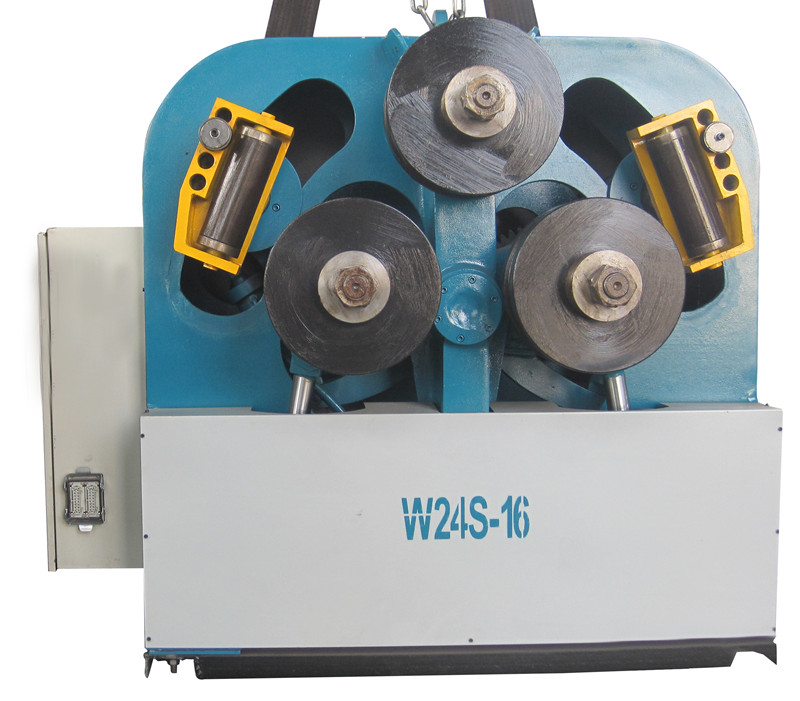

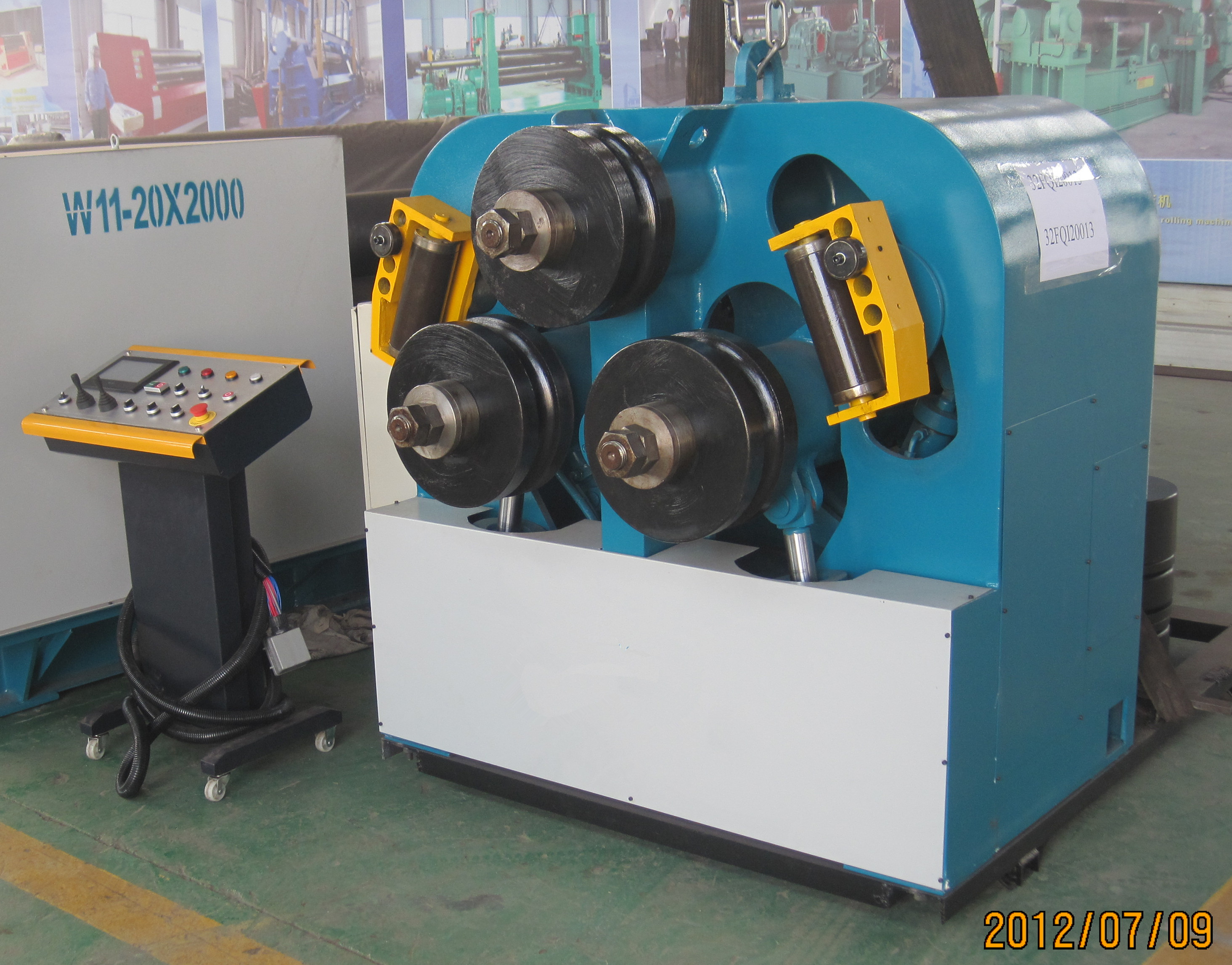

Hydraulic profile bending machine , heavy duty angle steel bending machines
Standard specification:
- 1 set of standard hardened and ground rolls (special steel)
- All rolls Planetary/Gear – Hydro motor Driven
- 3-axis hardened side supports with hydraulic forward-backward movement and mechanical up-down and right-left movement
- Side supports are suitable for angle iron bending leg in -Leg Out
- Portable control panel
- Horizontal and Vertical operation
- Body constructed of stress-relieved steel
- Overload protection on hydraulic and electrical systems
- Bottom rolls hydraulically adjustable with digital readout
3, Main components list:
| 1 | Hydraulic elements | Yuken, Japan |
| 2 | Sealing | Valqua, Japan |
| 3 | PLC | Omron,Germany |
| 4 | LCD display | Touchwin, China |
| 5 | Electrical elements | Siemens, Germany |
