iron plate hydraulic cnc folding machine metal sheet plate cnc folder machine
iron plate hydraulic cnc folding machine metal sheet cnc folder machine

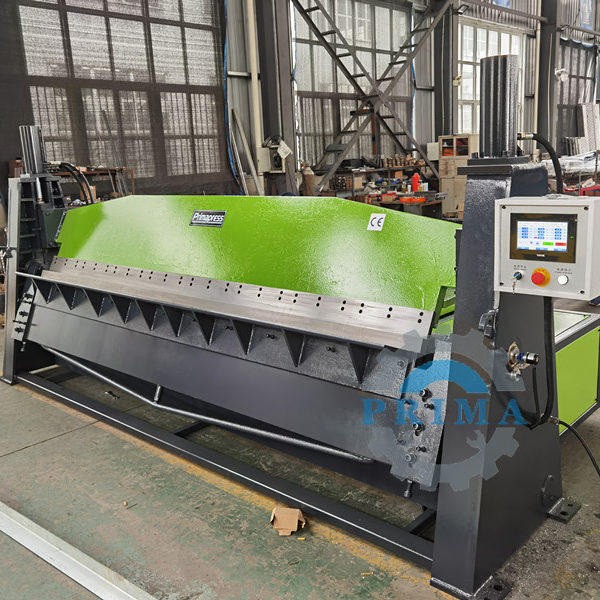

this iron plate hydraulic cnc folding machine metal sheet cnc folder machine 3x3200mm model ,
the customer is from Russia, this hydraulic cnc folder machine is specially made for this distributor .
and the cnc metal folding machine has following advantages:
|iron plate hydraulic cnc folding machine metal sheet cnc folder machine
|this machine has automatic backgauge setting ,and automatic cnc bending angle setting . 1,Hydraulic clamp and unclamp from foot switch, this allows one man to operate machine and hold material in both hands; Clamping is limited to 10mm increments for safety. Unclamp from foot switch.
|2. Rapid head adjustment allows easy change different size material, by moving the handles, Adjustable to suit special jobs .
|3. Fingers clamp blade are high carbon steel, Apron blade high tensile steel.
|4. Electrics low 24 volts foot switch. Overload protected.
|5. Clamping provided by large rams, Oil delivered to rams through steel pipes this is to minimize expansion of hydraulic hose when working at full capacity.
|6. Unclamp is controlled, to allow the operator to regulate the open height
|7. Bed head and apron are unique design, to provide maximum strength. To give a straight fold.
|8. Automatic and manual control. In auto cycle after clamping start auto a[rpm will come up to angle set, then apron will go down and the head will unclamp to amount set by operator.
|9. Electric components is.SIEMENS or Schneiders .
