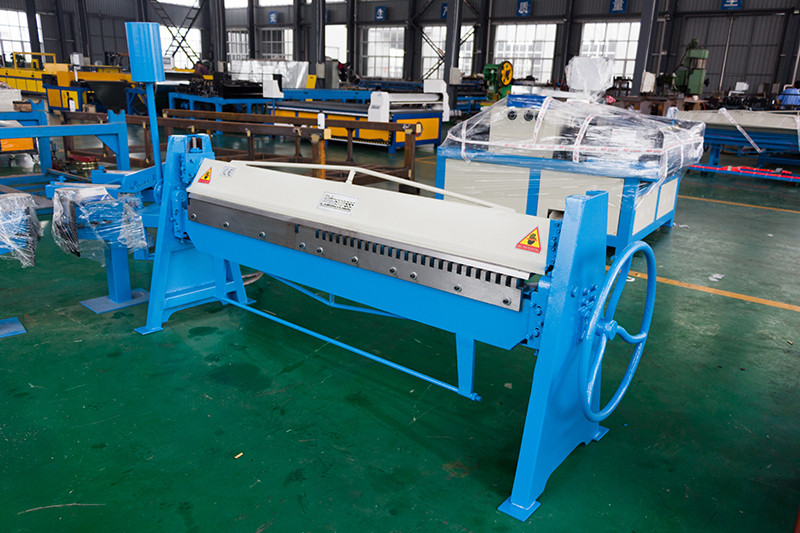

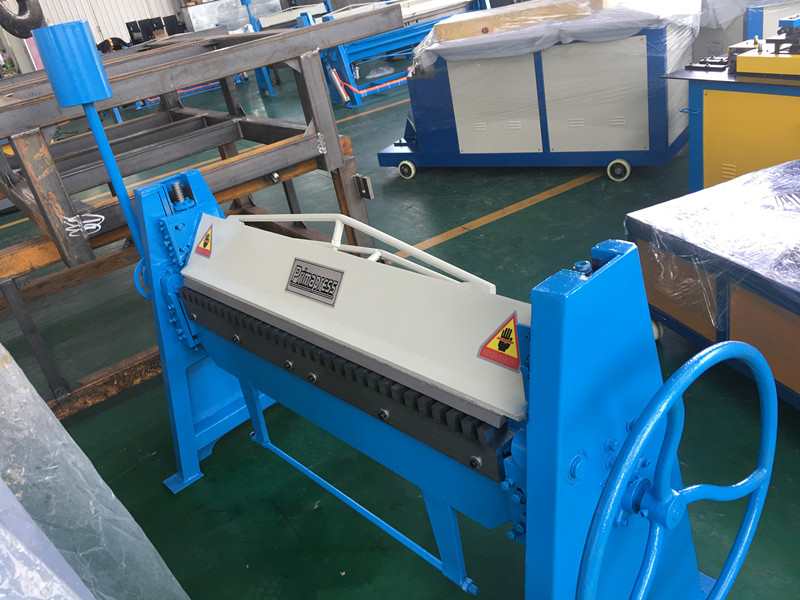

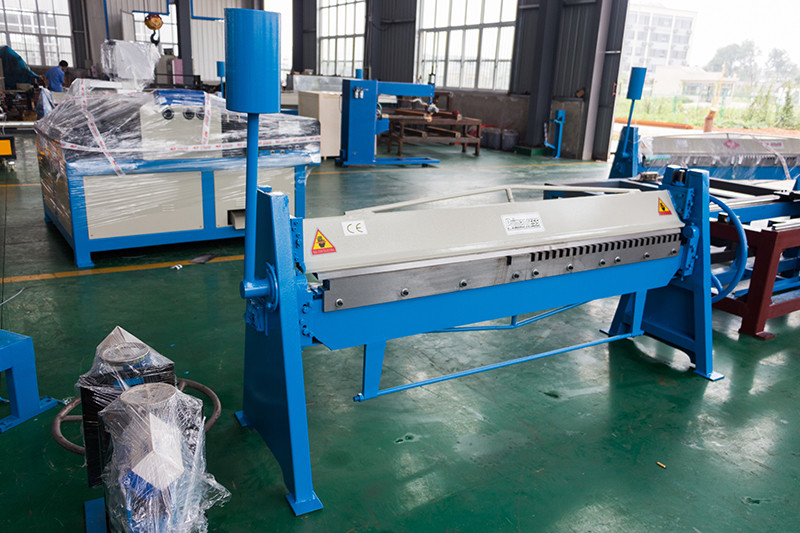

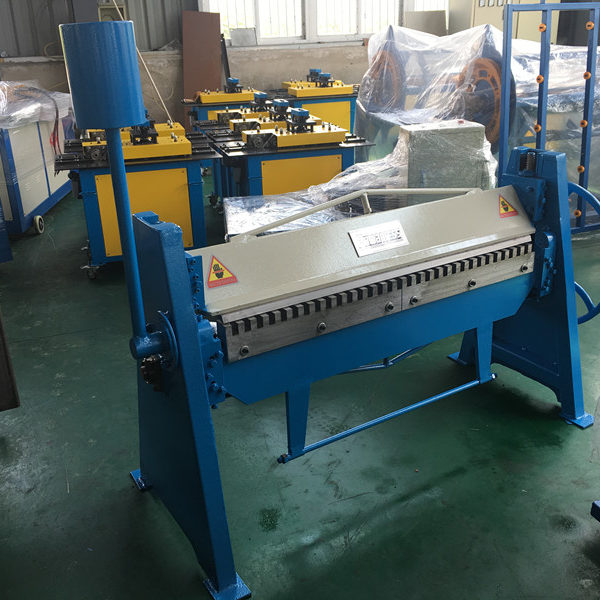

Manual TDF folding machine , manual TDF Folder machine
TDF Type Hand folding machine is usually used to fold 1.5 mm thick sheet metal to finish HVAC air duct sheet plate three folds. The machine can bend TDF flange sheet metal and flat sheet. Or you can choose manual flat sheet folding machine which only can fold flat plate. The machine can be controlled by the handle. There is a pendulum to keep balance when bending sheet metal. We will send video to tell customers the detailed operation way. If you need to bend thicker sheet plate, it needs more labor. Manual sheet metal bending machine is a very important part of square HVAC duct making machines series. The worker can use it with other rectangular air duct making machines together to finish a whole duct making, such as electric shearing machine, square pipe lock former machine, TDF flange shape forming machine, beading machine, lock seam closing machine, clips cutting machine, etc. As a machine which is easy to move, the machine is suitable for use on site. We can provide a complete machines series on the basis of every customers’ need and actual operating environment. Products mainly consist of the auto duct production line, rectangular duct making machine and round/spiral duct forming machine.
Parameters of small metal folding Machine :
| Model | WS 1.5 x 2500 | WS1.5 x 1500 | WS 1.5 x 1300 | WS1.5x 3200 | |
| Bending length | mm | 2500 | 1500 | 1300 | 3200 |
| Folding thickness for mild steel | mm | 1.5 | 1.5 | 1.5 | 1.5 |
| Min Folding angle | ° | 60° | 60° | 60° | 60° |
| Dimension L. x W. x H. | mm | 3300 x 950x 1870 | 2100 x 900 x 1100 | 1800 x 720 x1600 | 4200 x 720 x 1500 |
| Weight | Kg | 1300 | 900 | 800 | 1600 |
