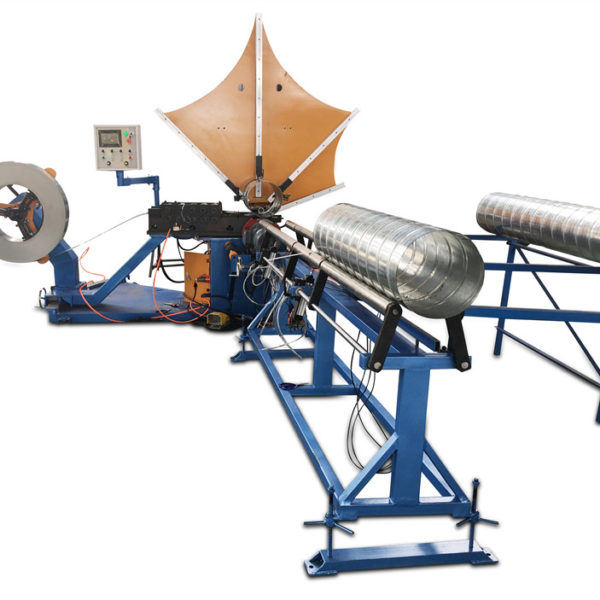

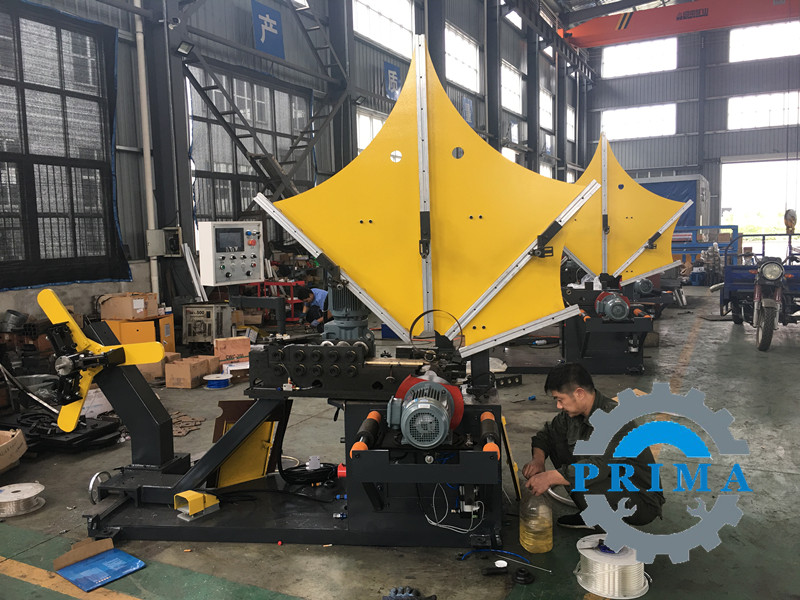

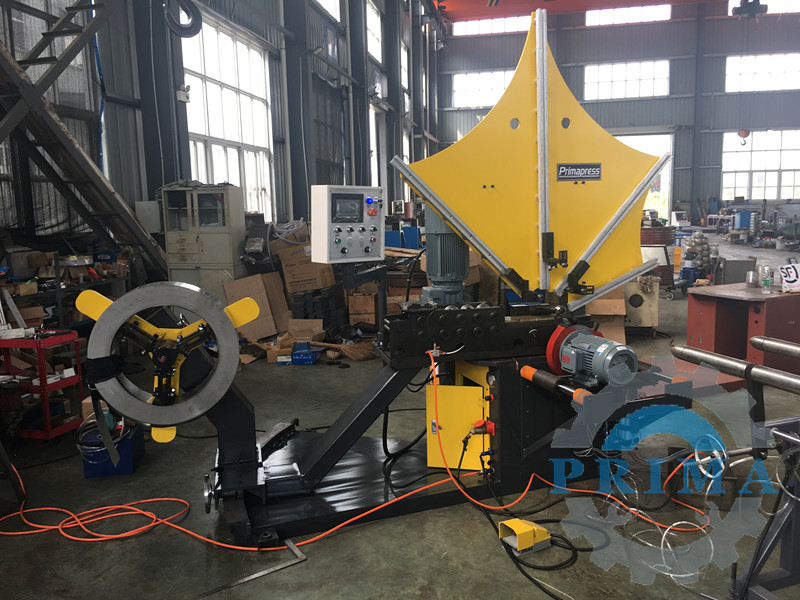

spiral tube former duct forming machine , spiral duct forming machines

https://youtu.be/E1TAlmTFKx8

Features:

  • Special mould for various tube diameters, very easy to change and adjust, no need crane or too much manpower
  • Large diameter range
  • High speed synchro flying cutting system
  • PLC control, convenient operation
  • Light and small, site work
  • Perfect swage, without leakage

Main Technical Data:

Diameter range Φ80-Φ1500mm
Tube Length 120-8000mm
Thickness of Strip 0.4-1.2mm     0.8mm stainless steel
Width of Strip 137-140mm
Strip Speed 1-38/min
Dimension (L x W x H): 3450*2050*2720mm
Lock seam Outside tube, on the inside on request
Weight 1800kg
Control System PLC automatic control
Compressed air power 0.5-0.7kmp
Electrical 380V/3PH/50HZ(According to customer’s request)
Main Motor Power 5.5kw
The power of cutting motor 4kw
Suitable Material Aluminum, Stainless steel, Galvanized steel
