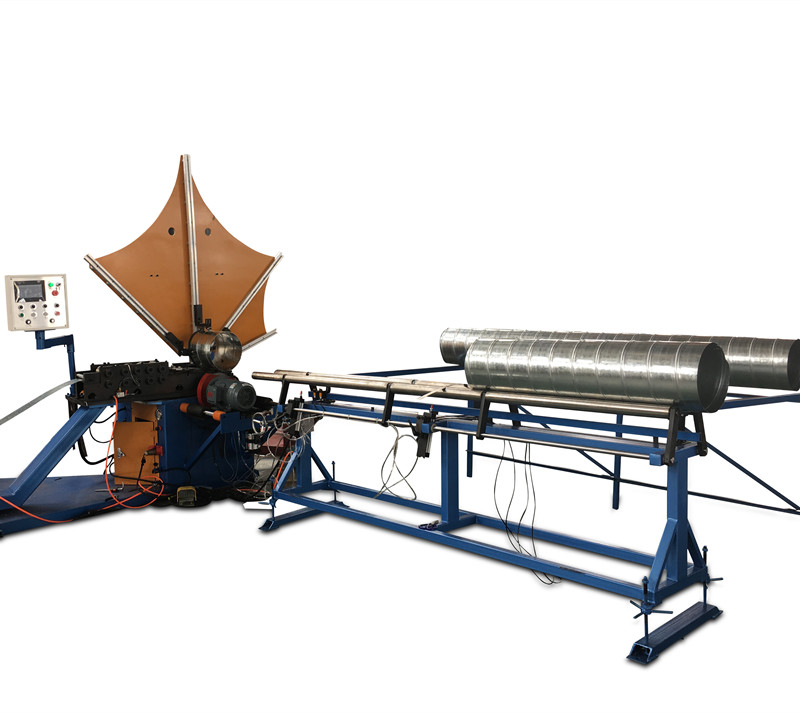

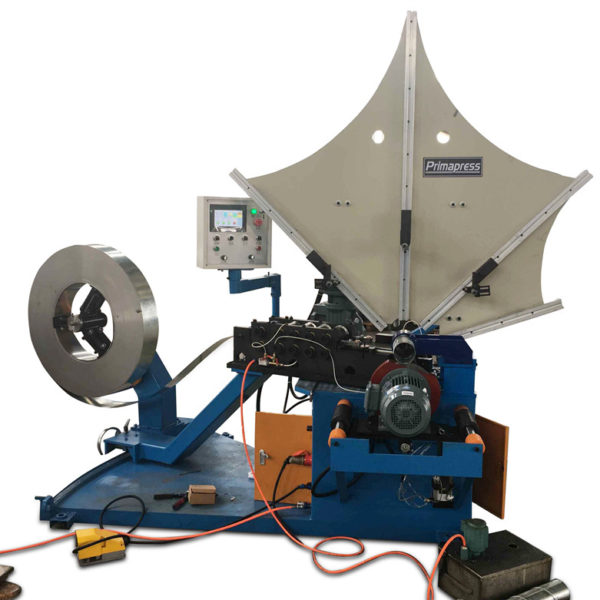

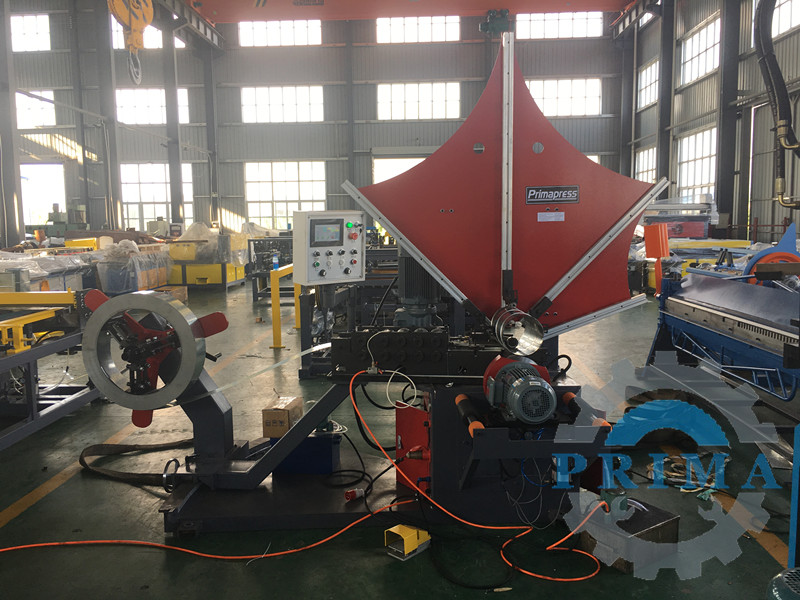

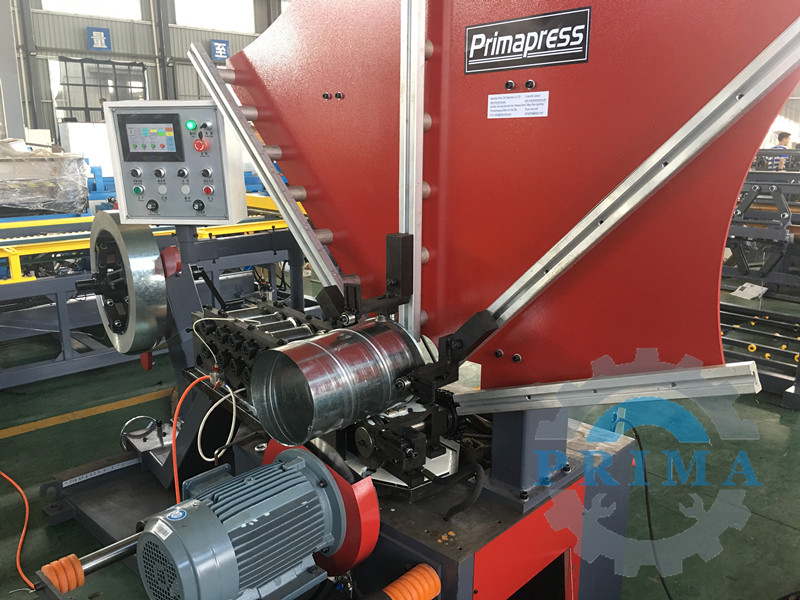

Tube Spiral duct forming machines with Plasma cutting head

Tube Spiral duct forming machines with Plasma cutting head

https://youtu.be/E1TAlmTFKx8

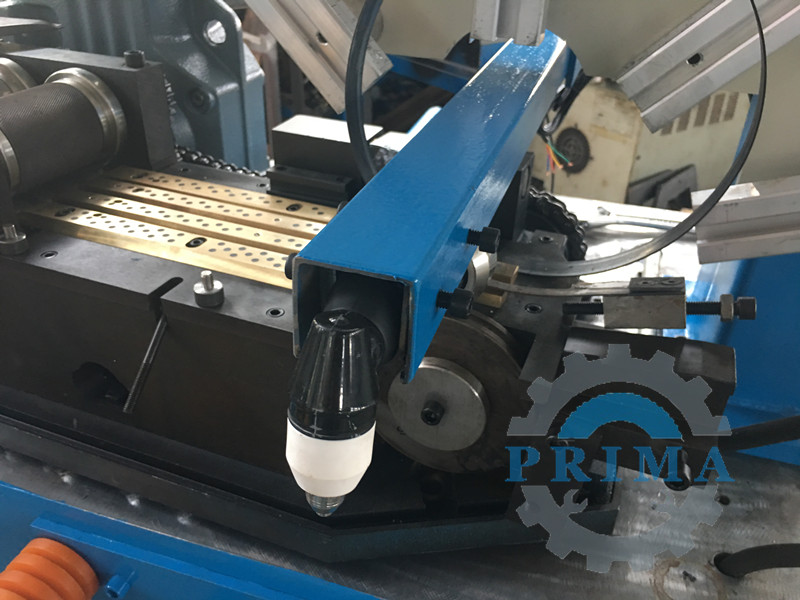

this plasma cutting head can cut big diameter spiral pipes.



Features:

  • Special mould for various tube diameters, very easy to change and adjust, no need crane or too much manpower
  • Large diameter range
  • High speed synchro flying cutting system

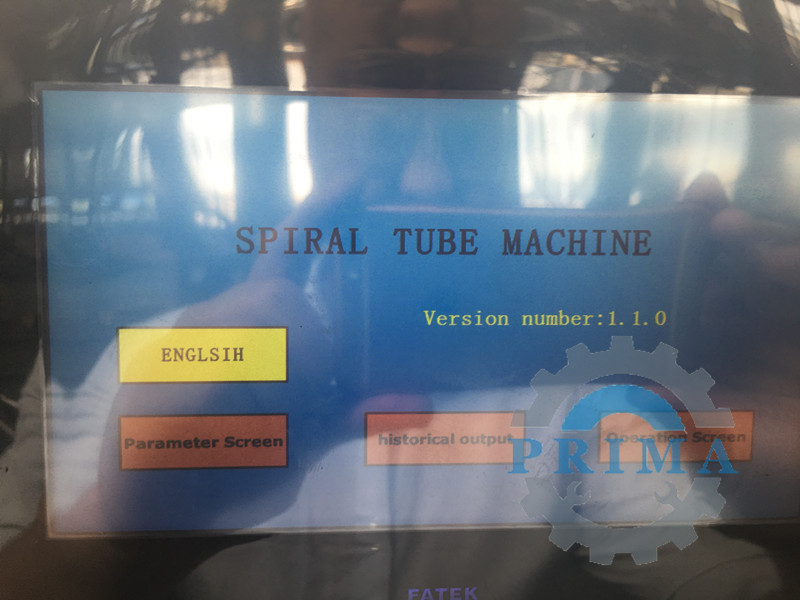

  • PLC control, convenient operation
  • Light and small, site work
  • Perfect swage, without leakage

Main Technical Data:

Diameter rangeΦ80-Φ1500mm
Tube Length120-8000mm
Thickness of Strip0.4-1.2mm     0.8mm stainless steel
Width of Strip137-140mm
Strip Speed1-38/min
Dimension (L x W x H):3450*2050*2720mm
Lock seamOutside tube, on the inside on request
Weight1800kg
Control SystemPLC automatic control
Compressed air power0.5-0.7kmp
Electrical380V/3PH/50HZ(According to customer’s request)
Main Motor Power5.5kw
The power of cutting motor4kw
Suitable MaterialAluminum, Stainless steel, Galvanized steel
