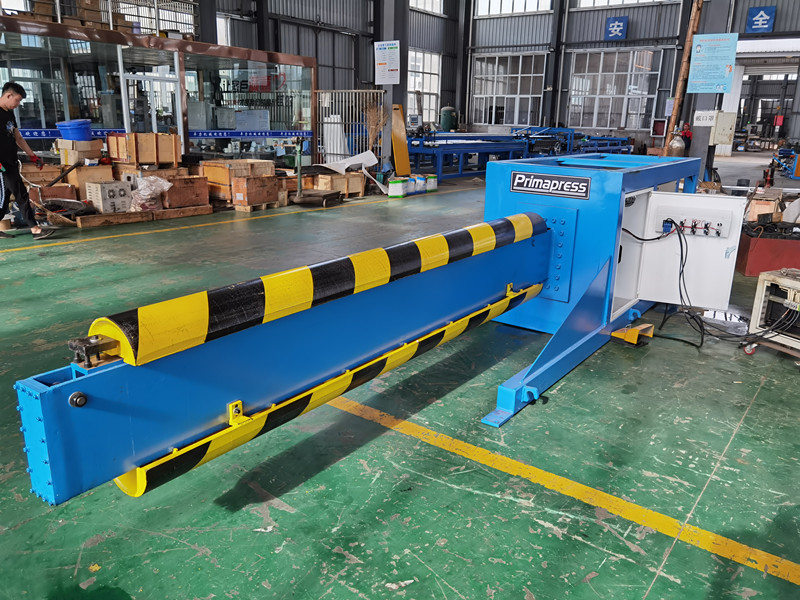

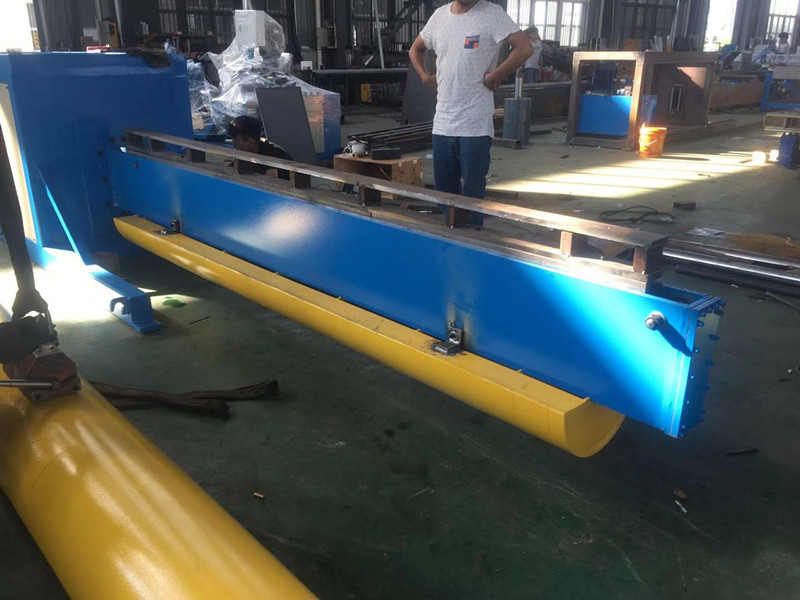

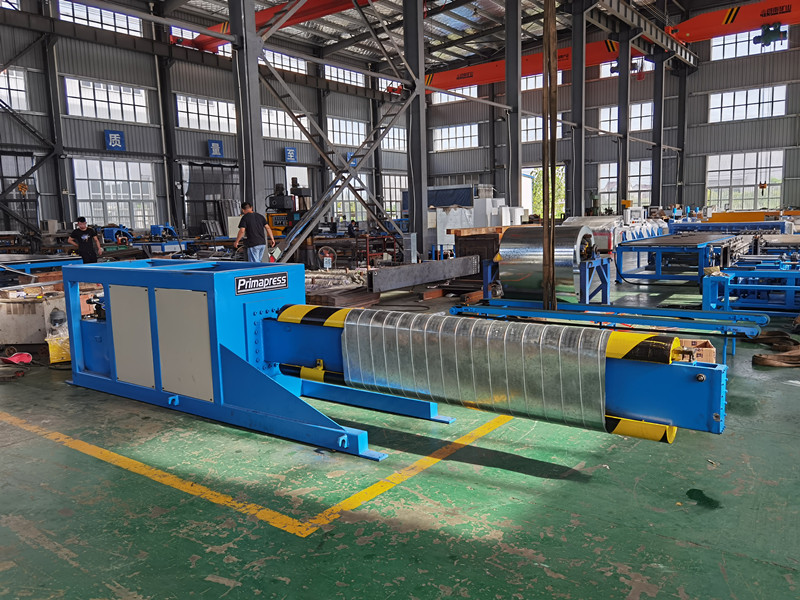

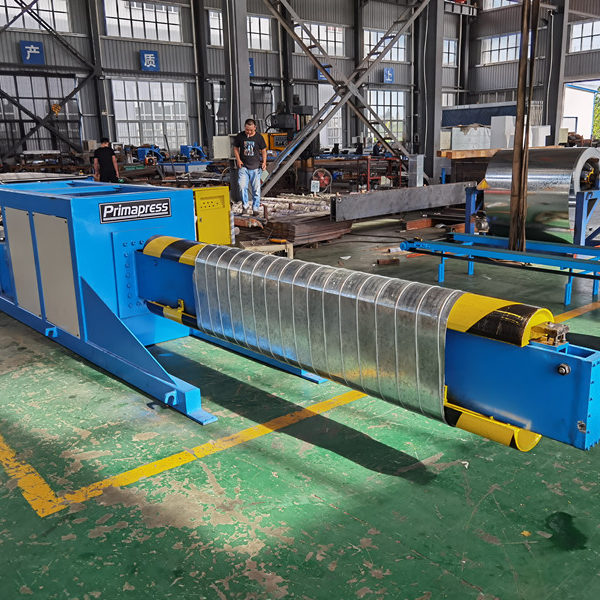

Ventilation equipment helix round oval duct former air pipe forming machine / sheet metal oval flat wind tube making machine

Categories: ,
Product name：Flat-Oval Ducts Machine PM-3100

https://youtu.be/ckgVtWCxyIs

Item：
Details：
flat-oval ducts. Machine control is by PLC, and the LCD unit on the operator‘s panel stores all set parameters for easy recall by the operator when required.

Ventilation equipment helix round oval duct former air pipe forming machine / sheet metal oval flat wind tube making machine

Main technical data

TypePM-3100
Thickness0.4-1.2mm
Tube Length3100mm
Diameter330-1600mm
Flat Oval sizes150×468mm-900×2060mm
Power18kw
Weight3300kg（Without Mould）
Dimension5600×1200×1300mm
Note：– All dimensions are nominal

– The duct circumference is increased by approximately 0.7% in the stretching process .

flat oval duct forming machine ovalizer forming machine oval spiral pipe duct forming machine
