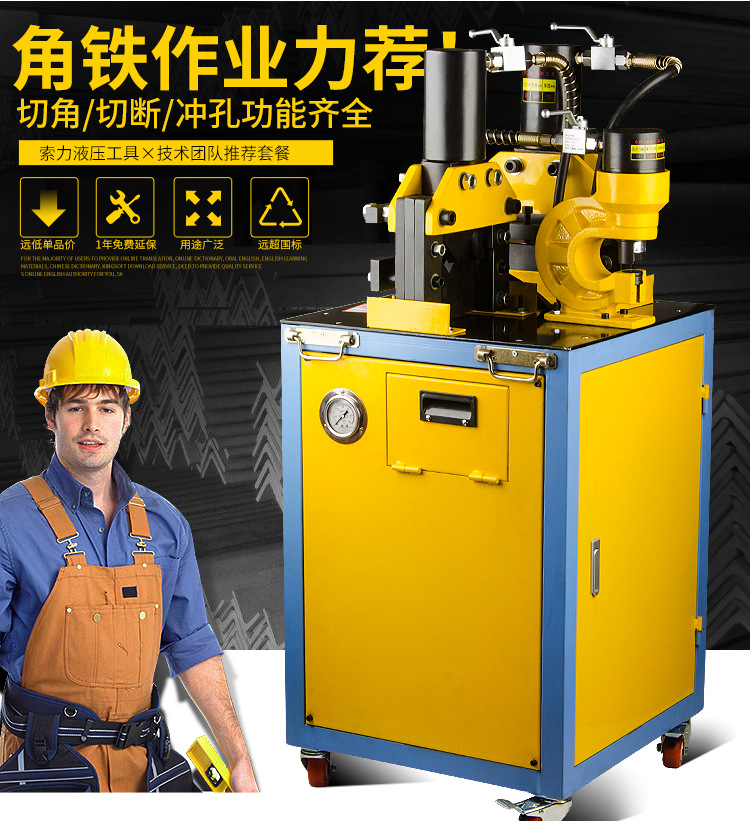

3in1 Angle steel hole punching cutting notching machine

3in1 Angle steel hole punching cutting notching machine

Video in Youtube:1, https://youtu.be/qp1G_g2Rzic

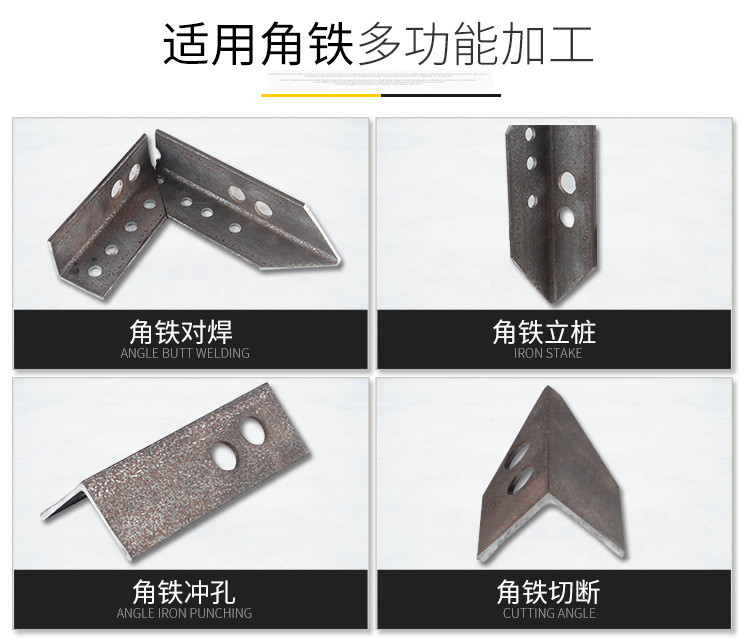

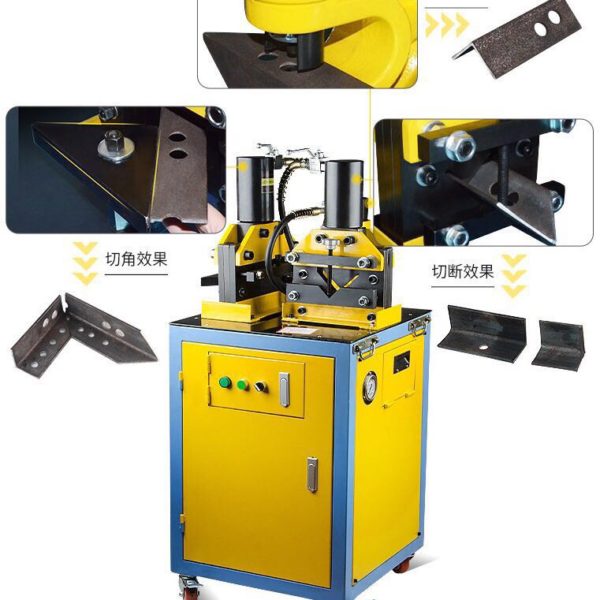

The angle steel master ,it’s used for notching or cutting right angle on sheet metal, this angle shearing machine has a steel welded structure which confirms enough stiffness and physical strength. Adopt hydraulic drive. Can adjust the angle between 40˚-130˚, and this machine has a small size, lightweight, and a novel structure. It is suitable to process metal plate with a fast and accurate processing and the notching quality is good.

Dimensions:

The specifications:

Modelangle size(mm)Max hole dia(mm)Thickness(mm)speed (m/min)Motor (kw)Weight(Kg)Dimension(mm)
PM7575165153300500*500*1200
PM100100168154350500*500*1300
