Electric shearing machine , sheet metal electric shear machines
Electric shearing machine , sheet metal electric shear machines
Video link in youtube: https://youtu.be/xp3eGLFOz5E https://youtu.be/F2kHnrkHIME
https://youtu.be/bYrRGXmdBTs ! https://youtu.be/4583cMgU7WQ

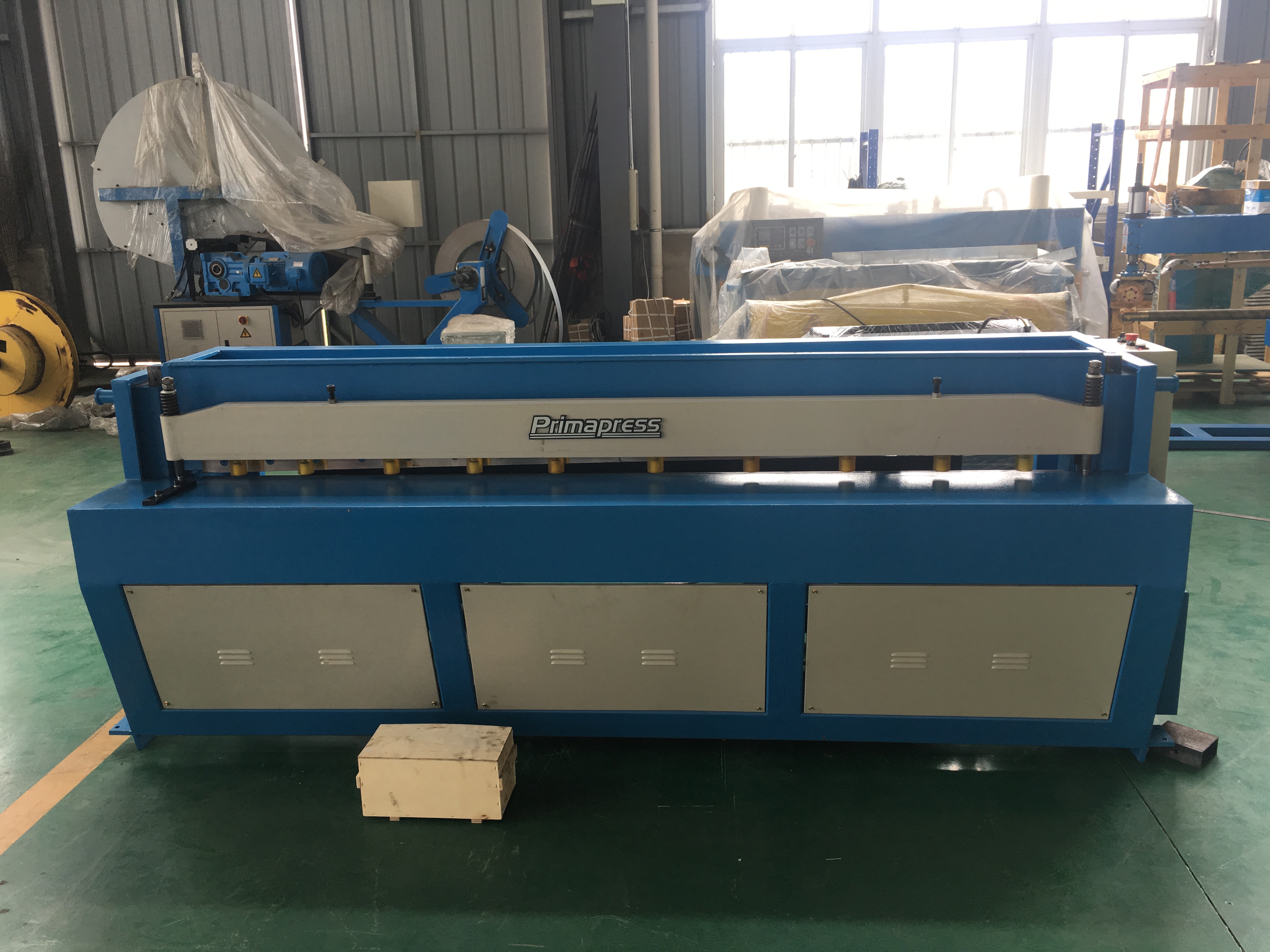

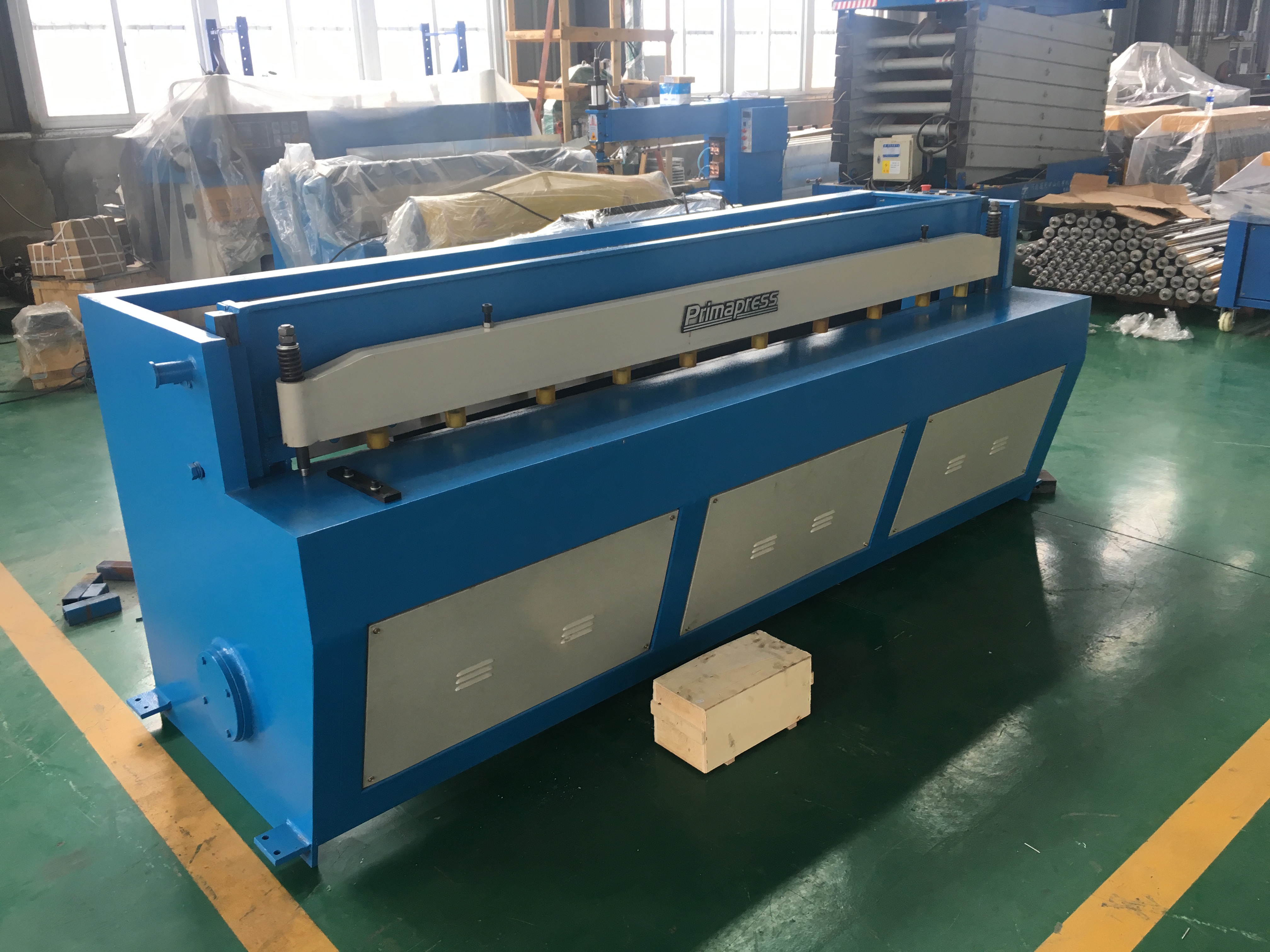

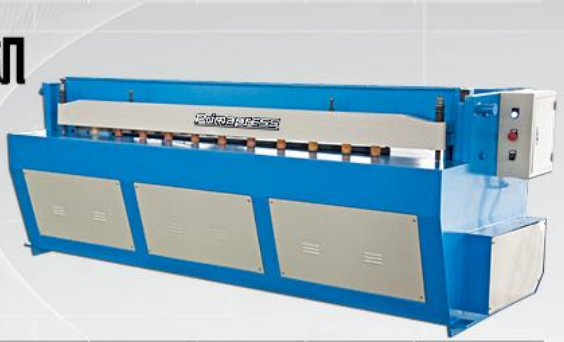

1,Metal Electric Shearing Machinery with Bench angle-stop
- Has safty nets at rear of the machine.
- 24V pedal switch of electric shearing machine is safe and easy to operate.
- Our electric shearing machine features high precision, high efficiency and stability.
- The smaller shearing angle ensures the shearing precision of the workpiece.
- Standard series electric shearing machine is equipped with a manual blocking device and counter readout device which can achieve accurate adjustment.
| Model | Q11-2X1500 | Q11-3×2050 | Q11-2X3000 | Q11-2X2550 |
| Max.shearing thickness(mm) | 2.0 | 3.0 | 2 | 2.0 |
| Max.shearing width(mm) | 1500 | 2050 | 3050 | 2550 |
| Shearing angle | 2° | 2° | 2.5° | 2.5° |
| No.of stroke(per minute) | 30 | 30 | 30 | 30 |
| Motor power(kw) | 3 | 4 | 4 | 3 |
| Back gauge(mm) | 630 | 630 | 630 | 800 |
| Packing size(cm) | 184X103X135 | 266x116x147 | 387X136X157 | 326X156X147 |
| N.W./G.W.(kg) | 980/1140 | 1520/1740 | 2400/2600 | 1960/1980 |
