J23 series 40Ton punching machine for punch duct corner

J23 series 40Ton punching machine for punch duct corner

video in youtude:

https://youtu.be/8WtrdDDYe74

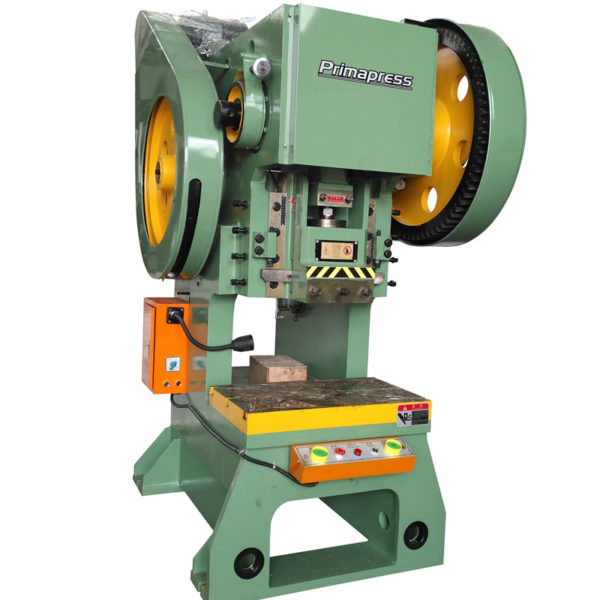

J23 Models mechanical press machine

                    Model

Items

6.3T12T16T25T40T63T80T100T125T160T
Norminal force(KN)63120160250400630800100012501600
Stroke under nominal force(mm)1.5222.5445555
Slide block stroke(mm)4050607080100112120140140
Number of stroke(T/mm)15014010070555645504040
Max die set height(mm)120130170200240275300320340370
Die set height adjusdment(mm)304040405663708090120
Distance from slide block centre to

the frame(mm)

120140188210235245250305330420
worktable(mm)length200210270320370410440510700740
width34037046050063564074081011001150
Max tilting degree(°)20203015252525202030
Size of the handle hole

(mm)

25Φ30Φ35Φ40Φ50Φ50Φ60Φ60Φ6060
Worktable thickness(mm)30354550708090110120130
Hole dimensions in bed (mm)Φ70Φ90Φ120Φ130Φ135Φ140Φ160Φ160170180
Motor (kw)0.751.51.52.245.57.57.51115
Distance between columns of body(mm)140190170240250280320390400420
Dimensions (mm)L400400760900140017001950200023002350
W500530650700100011501300140015001780
H1300140016002000230025002650285030003800
Groud size(mm)L400430600640110011501160130013501850
W4504704705306406807508409302450
Throat height (mm)190250310320410490500535560560
Rough weigth (kg)360600108019002400318045006000710014500
