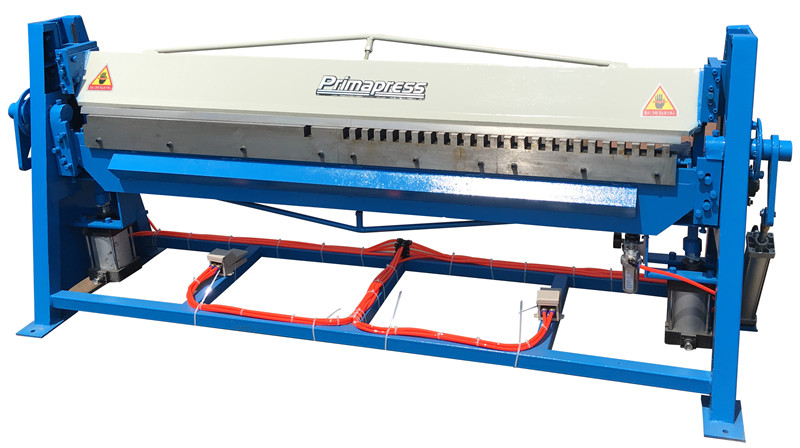

Pneumatic TDF Folding Machine, Air TDF Folder machine

Pneumatic TDF Folding Machine, Air TDF Folder machine

Feature of Pneumatic folding Machine :

Pneumatic folding machine is of all -steel welded construction. Simple construction with good appearance. It is easy to operate,

with low energy consumption.Our Pneumatic folders are of many types and incorporate with all the outstanding features.

The advantage is that both its up and down movements can be adjusted.They can process workpieces

according to the customer’s requirement, and can fold sheet into a box/pan with four sides.

Pneumatic folders are suitable for duct making, metal box forming and pan processing and can be used on the site.

They are in great demand all over the word for the light design, economical use and efficiency. They are perfect equipment for all occasion.

Discription of Instruction:

Pneumatic folding machine has light type and heavy type.Suitable for moving work site, producing ducting, tin metal box and pan processing.It won favor among the home and abroad customers by its light, saving energy, high efficiency, fast output and high rate of return.It is surely an ideal energy saving equipment of businesses and households.

Parameters of  small  metal folding Machine :

Model WS 1.2 x 2500 WS1.5x 1300 WS 1.2 x 3000 WS1.5 x 2500
Bending length mm 2500 1500 3000 2500
Folding thickness for mild steel mm 1.5 2 1.2 1.5
Min Folding angle   ° 60° 60° 60° 60°
Dimension    L. x W. x H. mm 3300 x 950x 1870 2100 x 900 x 1100 3700 x 900 x1800 2100 x 720 x 1400
Weight Kg 1300 900 1400 1200
