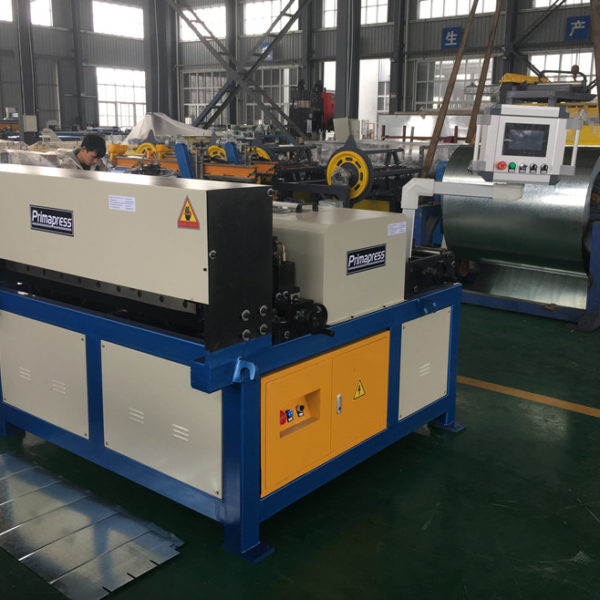

Rectangular Sheet Metal Tube making Duct Automation Line 2
1)Technical sheets:
| Model No. | Max Coil Width | Thickness Range | Power | Speed | Dimension | Weight | Diagonal Tolerance |
| PM2-1.2×1300 | 1300mm | 0.4-1.2mm | 10 | 0-15m/min | 2*1.8*1.3m
2.5*1.8*1.5m |
3.5ton | ±0.5mm |
| PM2-1.2×1550 | 1550mm | 0.4-1.2mm | 11.5 | 0-15m/min | 2*2*1.3m
2.5*2.2*1.5m |
4ton | ±0.5mm |
2)Standard Features:
Compact Line II is with hydraulic punching square and notching.

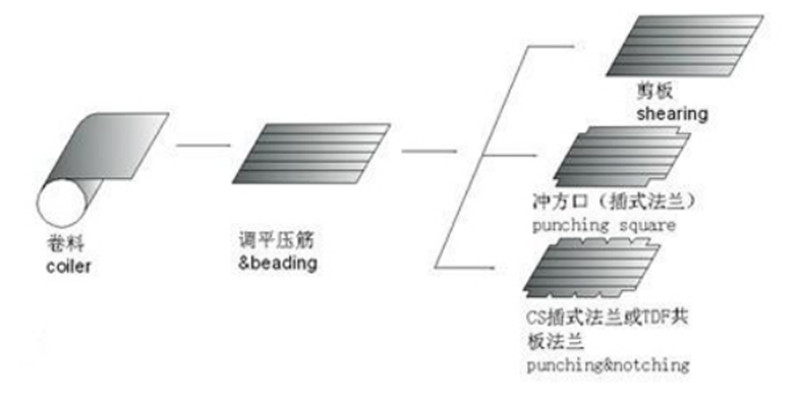

The work flow: coil-straightening-beading-punching-notching-shearing
3)Products Features：
- Automatic completion of flange plate and angle steel flange pipe material and joint bite
- Has material saving mode and standard mode;
- Max-working speed is 13m/min;length tolerance is +-0.5mm,diagonal tolerance is +-0.8mm
- With the dual linkage flange plate machine, pneumatic folding machine efficient linear flange plate of the wind pipe production line;
4)Basic Equipment:
- Amaterial frame（2coils;the max loading per coil is 7 tons)
- Atransmission frame ● A main machine ● A CNC system
