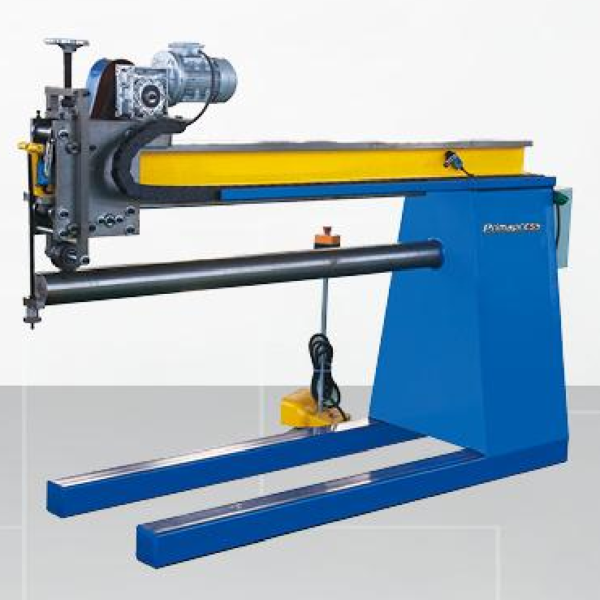

Round duct seaming machine , round ducting pipe closing machine

Round duct seaming machine , round ducting pipe closing machine

https://youtu.be/bCRpoI0Rrwk

Dechnical Data of Round Tube Closing Machine

Type PM-1.5X1000 PM-1.5X1500
Max. length 2000mm 1500mm
Max. thickness 1.5mm 1.5mm
Min. diameter 100mm 100mm
Power 0.55kw 0.55kw
Weight 355kg 410kg
Dimension 2170x780x1370mm 2690x950x1600mm

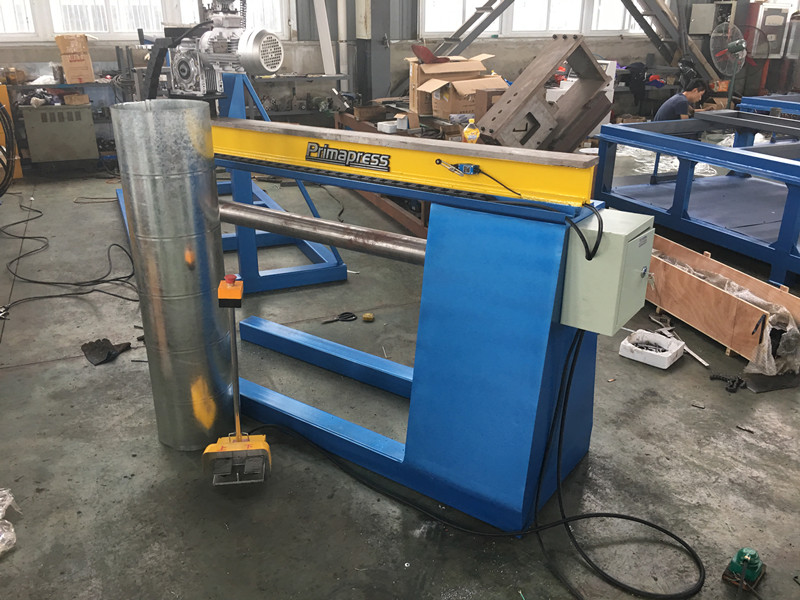

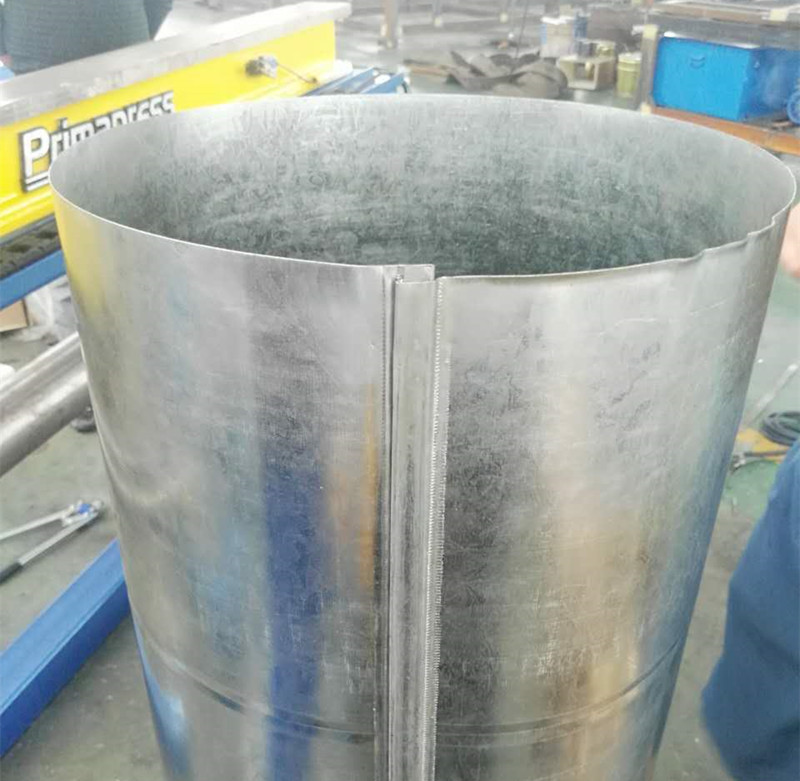

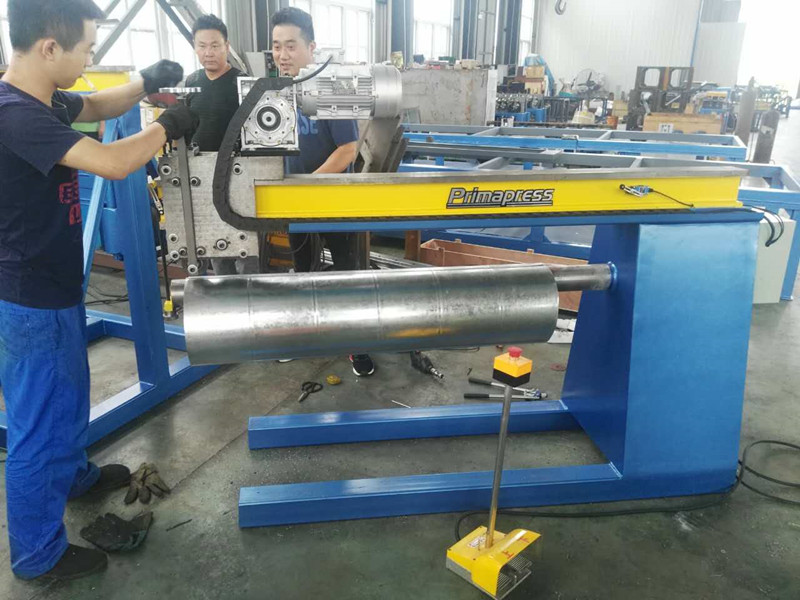

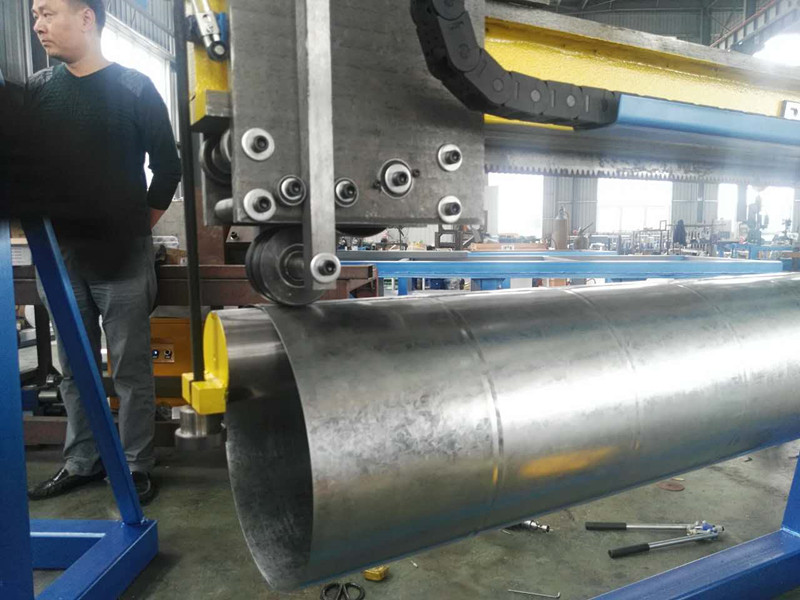

The machine is especially used to strengthen the button lock and particularly suitable for producing great amount of round ducts, it can combine with 3-roller forming machine or 4-roller forming machine to produce the duct which is of standard appearance and reliable quality. It is easy to install with high efficiency.
