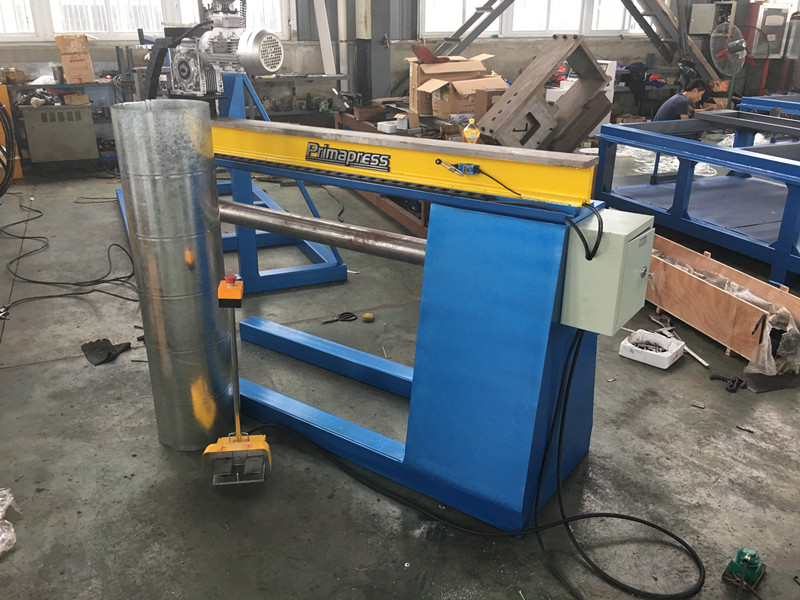

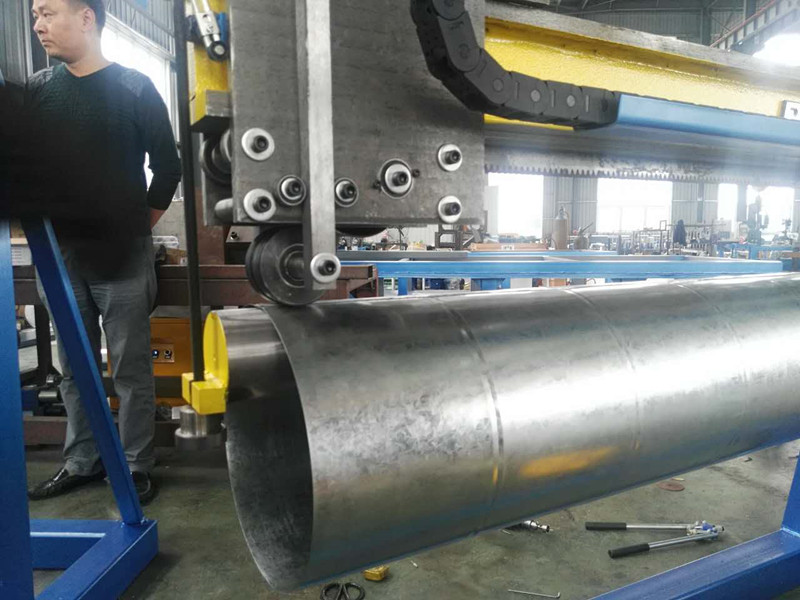

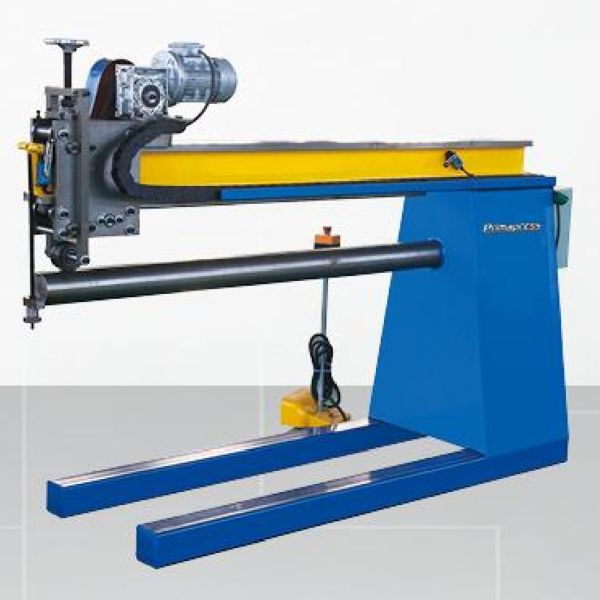

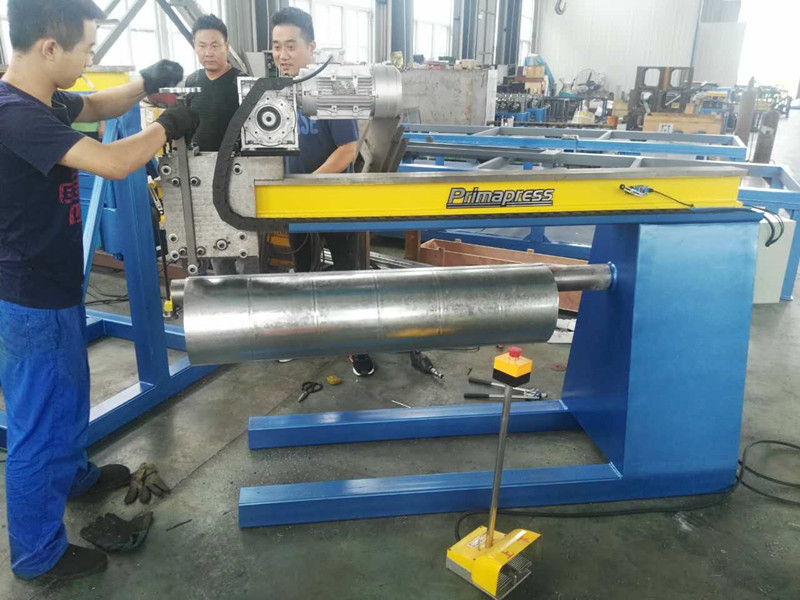

Round Tube duct seam Closing Machine round ducting seam zipping machine

Round Tube duct seam Closing Machine round ducting seam zipping machine

https://youtu.be/e8Q_xLNMyCY

Dechnical Data of Round Tube Closing Machine

TypePM-1.5X1000PM-1.5X1500
Max. length2000mm1500mm
Max. thickness1.5mm1.5mm
Min. diameter100mm100mm
Power0.55kw0.55kw
Weight355kg410kg
Dimension2170x780x1370mm2690x950x1600mm

The machine is especially used to strengthen the button lock and particularly suitable for producing great amount of round ducts, it can combine with 3-roller forming machine or 4-roller forming machine to produce the duct which is of standard appearance and reliable quality. It is easy to install with high efficiency.
