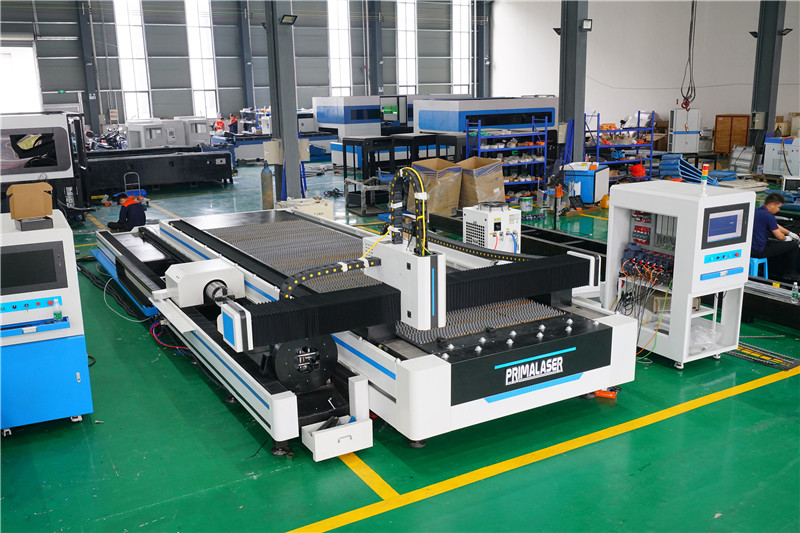

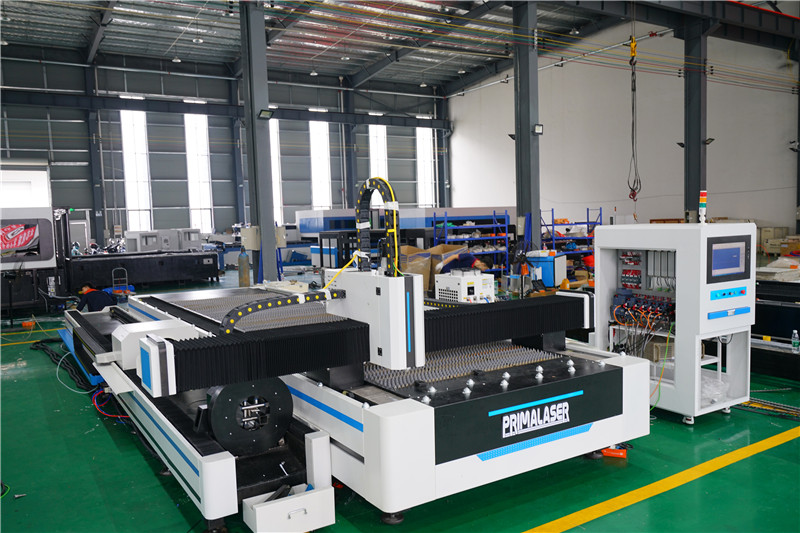

Stainless steel aluminum 3m 6m tube pipe fiber laser cutting machine 1kw 2kw 3kw
Parameters:
| Machine Model | PMFiber-1530 |
| Max. working area | 1500mm x 3000mm |
| Laser | Ipg 1000 watt fiber laser or 2kw 3kw |
| Cutting thickness | 0.1-10 mm/metals |
| Pipe length | 0.1-3meters or 6m |
| Pipe diameter | 20-200mm(if bigger, we can design specially) (can load square , round, rectangle pipe, and so on ) |
| Laser wavelength | 1080 nm |
| Rated power | 10-100% |
| Water chiller power | 5.6 Kw |
| X,Y-axis location accuracy | 0.01mm |
| X,Y-axis repeat location accuracy | 0.01mm |
| X,Y-axis fast moving speed | 80 m/min |
| X,Y-axis max. cutting speed | 45 m/min |
| Min. cutting line width | 0.02-0.08 mm |
| Max. cutting speed | 45 m/min |
| Machine occupy space | 5.5 m x 3 m |
| Machine weight | 7500 KG |
| Voltage | 380 V or optional to site |
