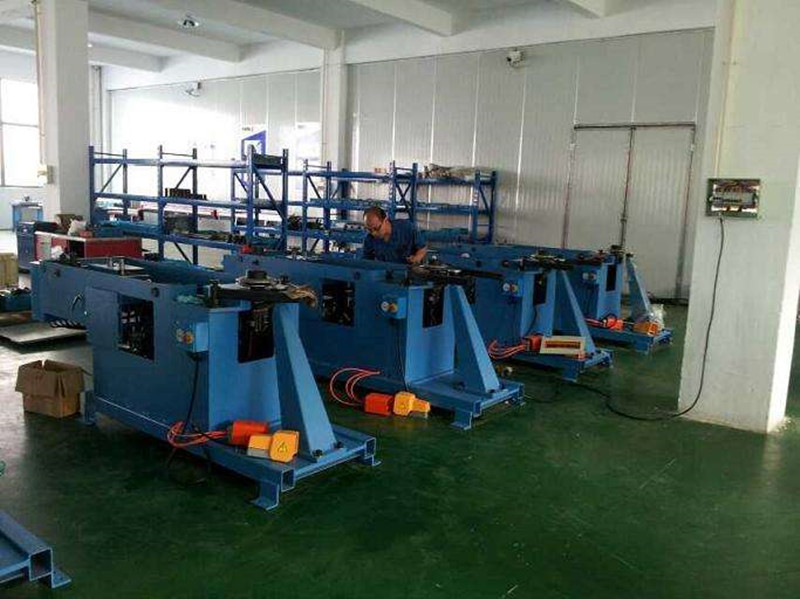

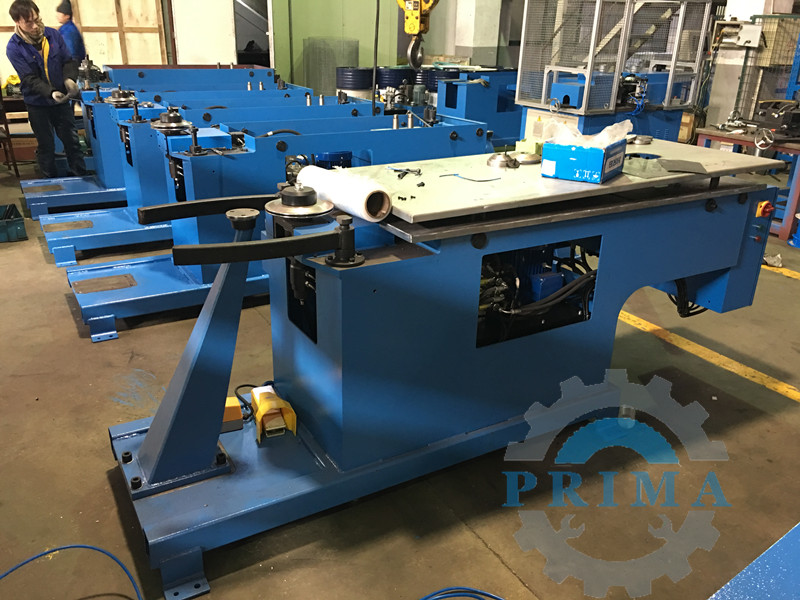

High speed elbow making machine , hydraulic duct gore locker machine for sale

High speed elbow making machine , hydraulic duct gore locker machine for sale

Video in youtube:

https://youtu.be/RcUOO2txiuE
https://youtu.be/UbHLOKR7tls

One. Features

Brief introduction

Dual working station

Maximum flexibility-eliminates equipment’s changing over and reduces tool’s changing

Higher production speed

Higher capacity

Improved seam’s quality

Second, Data

Electrical power 380V/50HZ/3PH

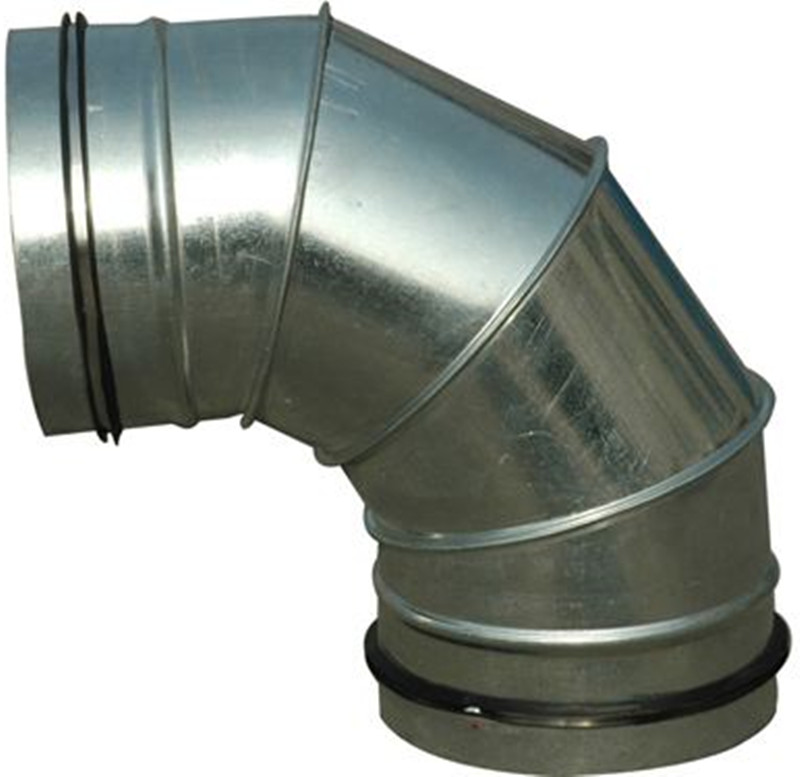

Diameter range of the curves 125-1000mm
Max. segment angle 30o
Sheet thickness Galvanized steel 0.4~1.2mm
Stainless: 0.4~0.9mm
Aluminum: 0.4~1.2mm
Copper: 0.4~1.2mm
Flange heights 5mm/7.5mm/10mm
Recommended ranges 5 mm to 200 mm diameter

7.5mm to 700mm diameter

10mm above 700mm diameter

Circumferential speed of the roller 0 – 15 m/min
Weight 680kg
Dimensions 1350脳620脳1170mm
Pckaging Size 1350脳1150脳1320mm



Hydraulic system from Italy.
