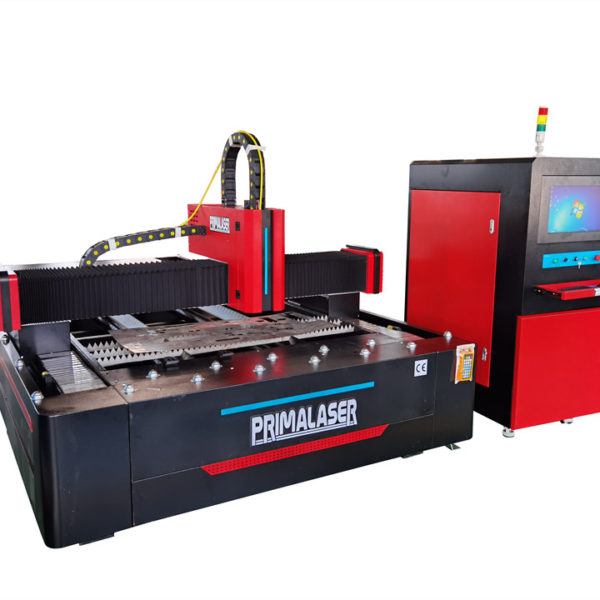

Raycus 1000w Fiber laser cutter machine, 1000w metal fiber laser cutting machines

Raycus 1000w Fiber laser cutter machine, 1000w metal fiber laser cutting machines

https://youtu.be/3oQcYc0Q5ag

1.Working area: 2500mm*1300mm/3000mm*1500mm/4000mm*1500mm
(8.2*4.26feet/9.8*4.9feet/13*4.9feet)
2.Fiber power: 500w/750w/1000w/1500w/2000w/3000w.

This fiber laser machine is manufactured in September,2017. With a beautiful appearance.

The working area is 2500mm*1300mm,3000mm*1500mm,4000mm*1500mm,fiber power can be 500w/750w/1000w/1500w/2000w/3000w,it is able to cut up to 20mm mild steel.

working area2500mm*1300mm/3000mm*1500mm/4000mm*1500mm laser power500w/750w/1000w/1500w/2000w/3000w
Maximum velocity of movement
100m/min
X/Y axis repeated positioning accuracy±0.02mm/m

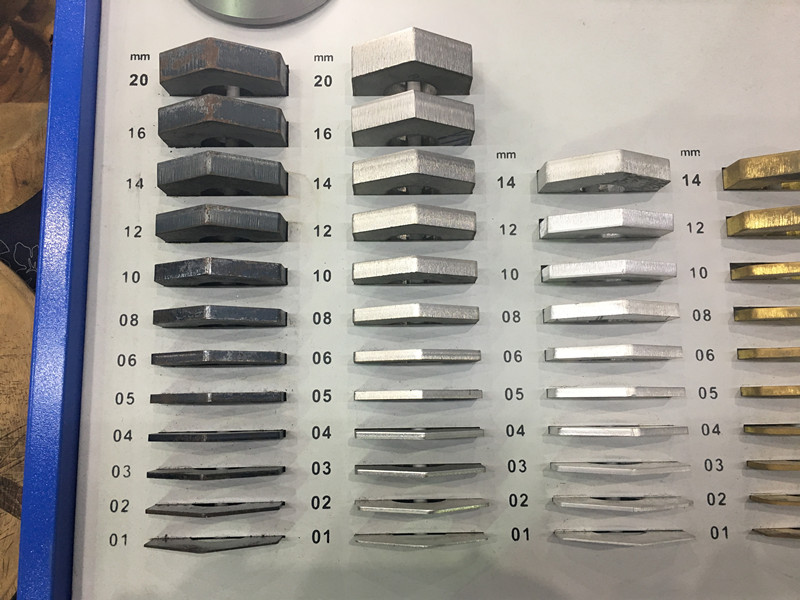

Cutting Materials and Thickness

Stainless Steel 0.4-3mm 0.4-4mm 0.4-5mm 0.4-6mm 0.4-8mm 0.4-10mm
Carbon Steel 0.4-6mm 0.4-10mm 0.4-12mm 0.4-14mm 0.4-16mm 0.4-20mm
Aluminum 0.4-2mm 0.4-3mm 0.4-3mm 0.4-4mm 0.4-6mm 0.4-8mm
Brass 0.4-3mm 0.4-3mm 0.4-3mm 0.4-8mm
Fiber Power 500W 750W 1000W 1500W 2000W 3000W

More details about other thin metal materials,just leave your message on line or send e-mail to sale@lmcnclaser.com .

Features

  • Stable and reliable light path system and control system.
  • Imported original fiber laser generator with great and stable performance to have lifespan over 100,000 hours.
  • High cutting quality and efficiency with cutting speed up to 25m/min and beautiful,smooth cutting edge.
  • High performance reducer,gear and rack;guide rail and ball screw to guarantee stable running.

Application

The machine is specially used for cutting 0.4-20mm carbon steel;0.4-10mm stainless steel,galvanized steel;0.4-8mm aluminum alloy;0.4-6mm brass and various other thin metal.

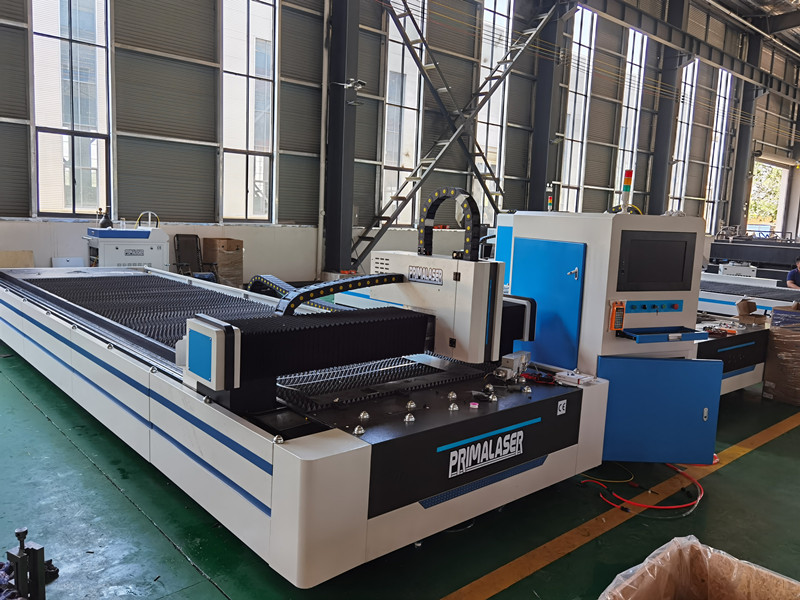

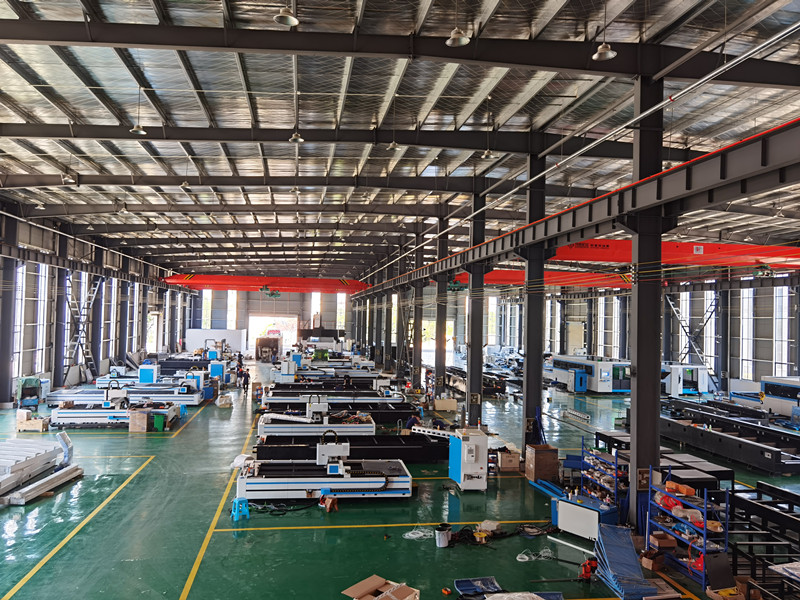

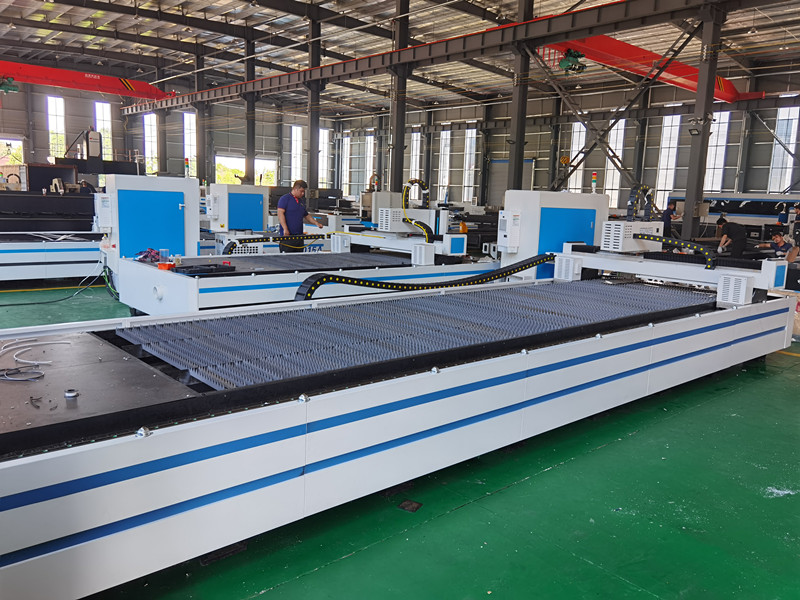

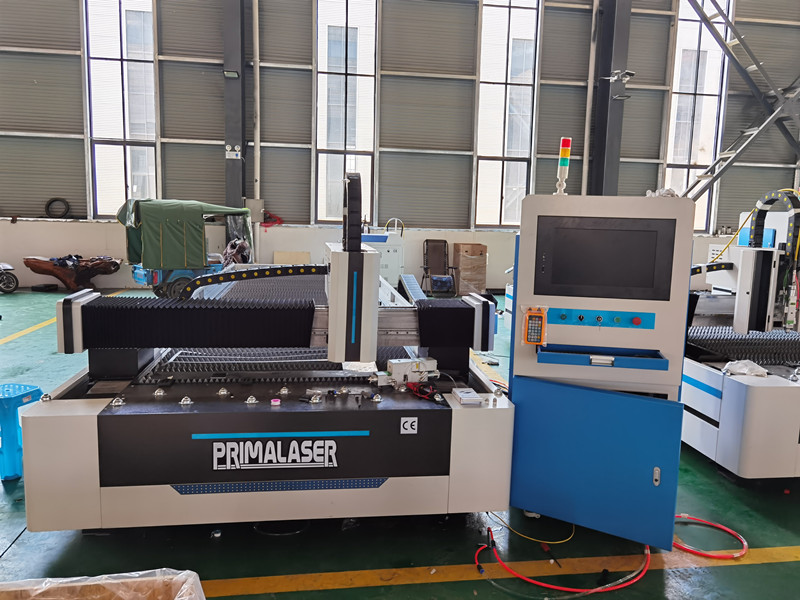

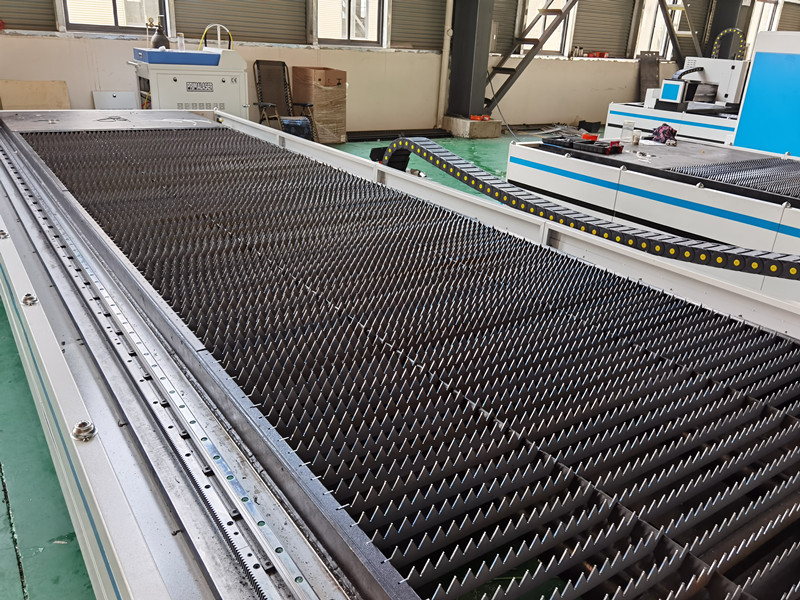

Real Life photos:
