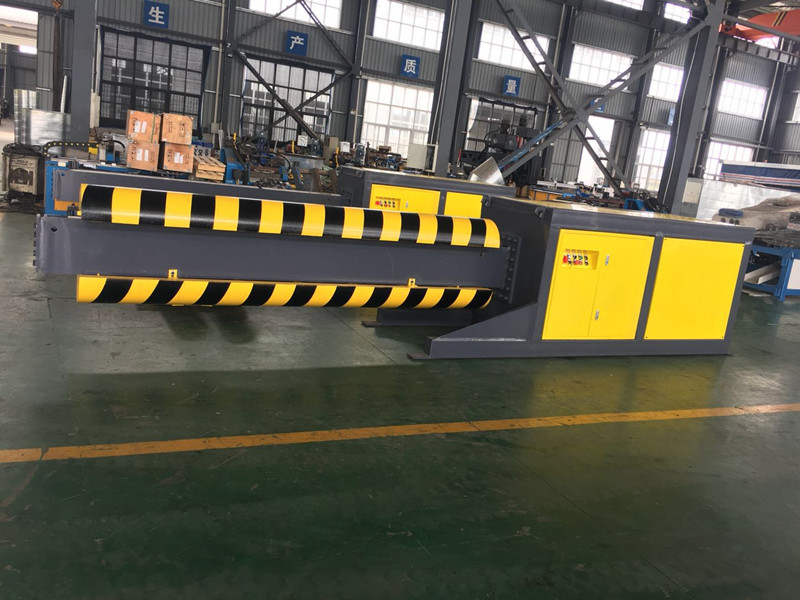

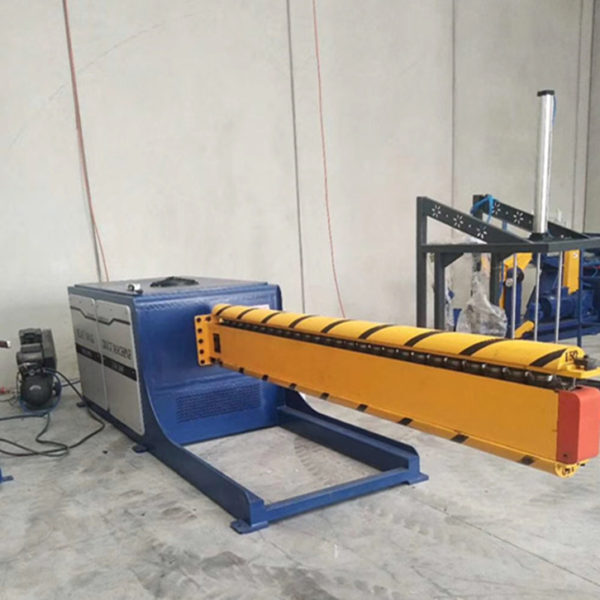

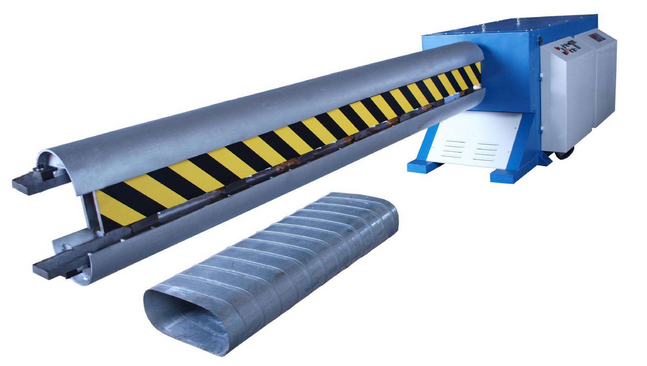

Product name:Flat-Oval Ducts Machine PM-3100

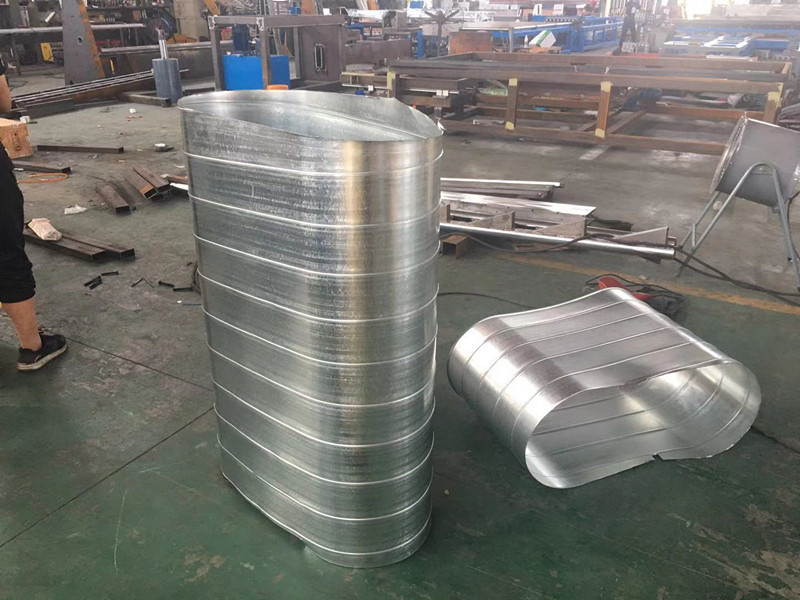

flat-oval ducts. Machine control is by PLC, and the LCD unit on the operator‘s panel stores all set parameters for easy recall by the operator when required


Main technical data

Type PM-3100
Thickness 0.4-1.2mm
Tube Length 3100mm
Diameter 330-1600mm
Flat Oval sizes 150×468mm-900×2060mm
Power 18kw
Weight 3300kg(Without Mould)
Dimension 5600×1200×1300mm

– All dimensions are nominal

– The duct circumference is increased by approximately 0.7% in the stretching process
